Bray 01 Series quarter-turn manual valve actuators are used for on-site manual operation, isolation, and throttling control of quarter-turn valves. Compatible with resilient-seated or lined-seat valves from 1" to 12" and high-pressure valves from 2½" to 8"; equipped with standard or high-torque handles, open/close stops, and multi-position valve position-locking devices.

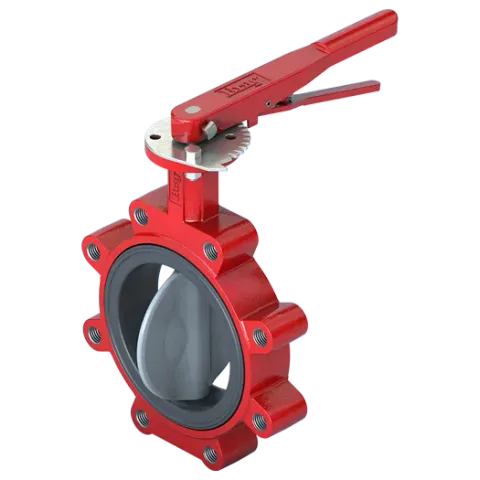

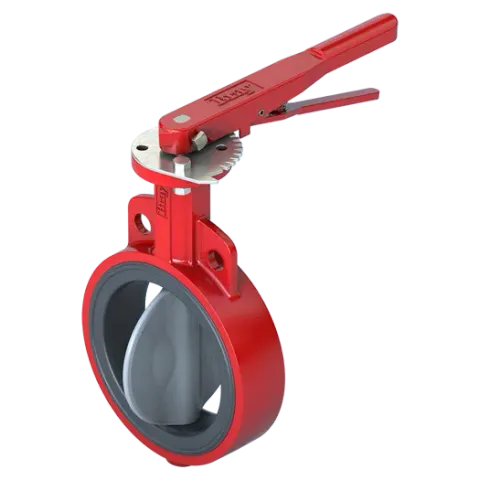

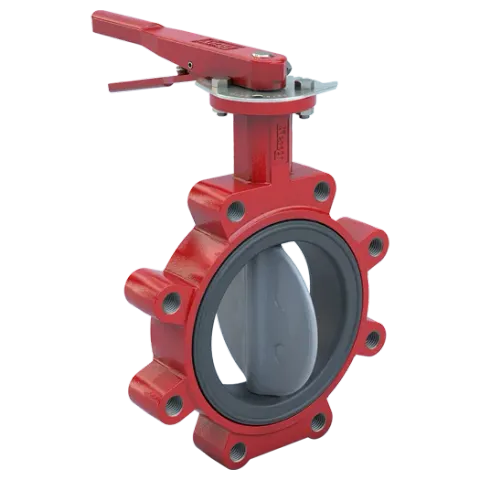

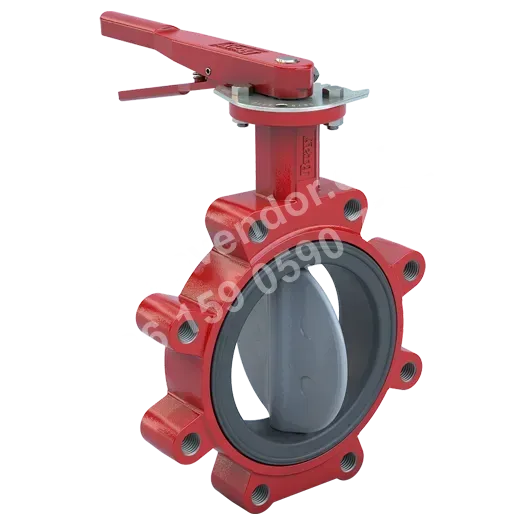

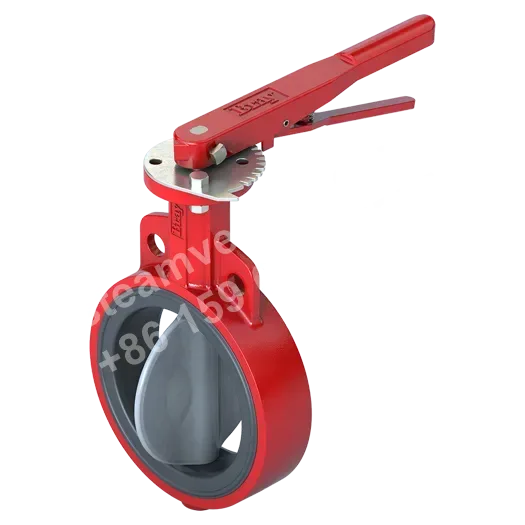

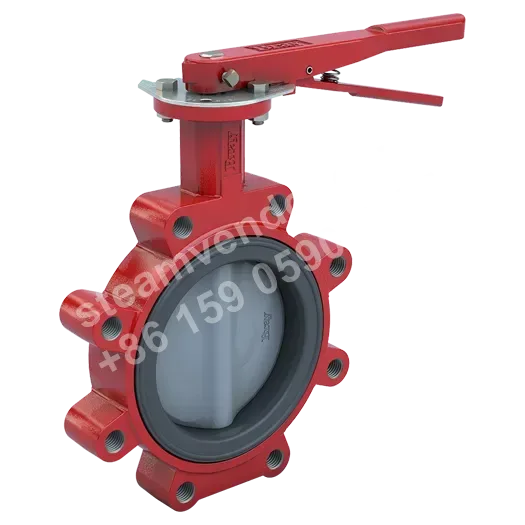

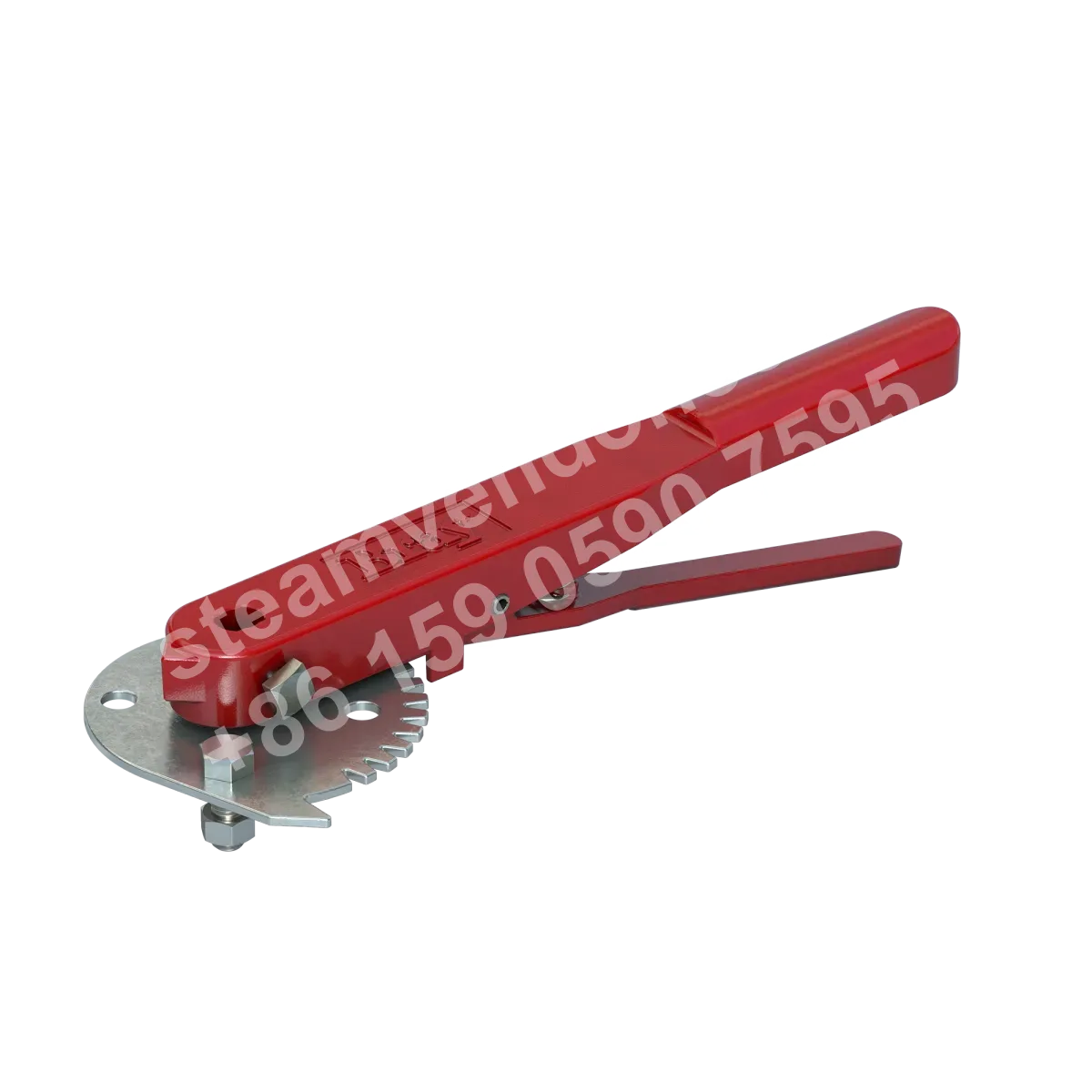

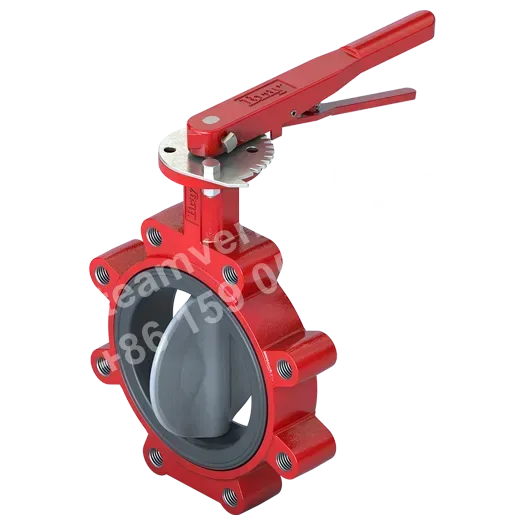

Series 01 Manual Actuator Product Image
1 / 6
Bray Series 01 Quarter-Turn Manual Valve Actuator
Quarter-turn manual actuator for on/off and throttling service, with an optional padlock kit.
Genuine product assurance
We can help verify product data and purchasing details.
Model confirmation
Confirm model, connection and key options before ordering.
After-sales support
After-sales communication support is provided according to the order agreement.
Specifications
- Operation
- Quarter-turn
- Power Source
- Manual operation
- Service Type
- On/off and throttling
- Applicable Size for Resilient-Seated Valves
- 1"-12" (25mm-300mm)
- Applicable Size for High-Performance Valves
- 2½"-8" (65mm-200mm)
- Handle Type
- Standard handle (resilient-seated), high-torque handle (high-performance valve)
- Standard Quadrant Plate Positions
- 10 positions (resilient-seated valves), 9 positions (high-performance valves)
- Stop Device
- Open/close stop device
- Application Type
- Isolation/on-off
- Optional Configurations
- Infinite-position quadrant plate, 180° notched plate, memory stop device, padlock kit, 2" square nut version
Application scenarios
On-site manual isolation for resilient-seated or rubber-lined quarter-turn valves
For on-site manual operation and line isolation of resilient-seated or rubber-lined quarter-turn valves. Available with a standard handle, 10-position notch plate, and open/close stop device for valve sizes from 1 inch to 12 inches (25 mm to 300 mm).
On-site manual operation and isolation for high-pressure quarter-turn valves
For on-site manual operation and isolation of high-pressure quarter-turn valves. This series is equipped with a high-torque handle, 9-position notch plate, and open/close stop device for high-pressure valves in sizes from 2½ inches to 8 inches (65 mm to 200 mm).
Manual throttling for compatible quarter-turn valves
For manual throttling service of compatible quarter-turn valves. This series is specifically suitable for on/off and throttling applications, with valve position indexing via a notch plate and an optional infinite-position quadrant plate.
Selection points
Two Handle Versions Matched to Valve Type
Available with standard and high-torque handles: the standard handle is suitable for 1-inch to 12-inch (25mm to 300mm) resilient-seated valves, while the high-torque handle is suitable for 2½-inch to 8-inch (65mm to 200mm) high-performance valves.
Standard Multi-Position Notched Indexing Configuration
The actuator uses a handle with a locking spring and a bolted notched plate. Resilient-seated valves are standard with a 10-position quadrant plate, while high-performance valves are standard with a 9-position quadrant plate, suitable for on/off and throttling service.
Open/Close Stops Prevent Over-Rotation
Both resilient-seated valve and high-performance valve versions are equipped with open/close stop devices to limit excessive valve rotation, suitable for isolation and on/off applications.
Optional Infinite-Position Quadrant Plate
An optional infinite-position quadrant plate provides more flexible opening-position selection for manual throttling applications than standard 9-position or 10-position quadrant plates.
Optional Memory Stop and Misoperation Prevention Accessories
Optional memory stop devices, padlock kits, and 2-inch square nut versions are available to meet site-specific opening control and operational management requirements.
Optional 180° Notched Plate
An optional 180° notched plate is available as a quadrant plate configuration option for Series 01 manual actuators.
Installation & maintenance notes
Match Valve Type, Size, and Handle Version
Before installation, select the appropriate handle version according to valve type and size: use the standard handle for 1-12 inch resilient-seated valves and the high-torque handle for 2 1/2-8 inch high-performance valves.
Verify Quadrant Plate Positions and Valve Type
During installation, verify that the quadrant plate positions match the valve type: resilient-seated valves are standard with 10-position quadrant plates, while high-performance valves are standard with 9-position quadrant plates.
Confirm Open/Close Stops Prevent Over-Rotation
Before installation and operation, confirm that the open/close stop devices function properly to prevent excessive valve rotation.
FAQ
What is the operating principle of the Series 01 manual actuator?
The Series 01 manual actuator provides manual on/off and throttling control through a quarter-turn mechanism. Rotational movement drives the notch plate position indicator to display the current status, providing open/close and positioning functions.
How does compatibility differ for various valve sizes in this series?
Resilient-seated valves are suitable for sizes from 1"-12" (25mm-300mm), while high-pressure valves are suitable for sizes from 2 1/2"-8" (65mm-200mm); both use different notch plates for positioning.
What common optional control features are available?
Available options include an infinite-position notch plate, 180° slotted plate, memory stop device, padlock kit, and 2" square nut version.
What are the main applications of this manual actuator?
It is used for isolation, on-off, and throttling control applications, and is suitable for manual actuation of resilient-seated and rubber-lined seat valves.
What key points should be considered during maintenance and installation?
Check the locking spring, readability of the direction indicator, and protection against over-rotation of the notch plate during opening and closing. Also ensure that the bolted slotted plate is securely fastened and follow standard equipment maintenance procedures.
