Gestra QuickEM is a flanged industrial steam trap module available in carbon steel and stainless steel versions, widely used for condensate discharge from waste heat recovery units. The module covers nominal sizes from DN 15 to DN 50 and pressure ratings up to PN 40. It can be flexibly configured with BK, MK or UNA series steam traps and bypass piping. The QuickEM Control version is equipped with an NRG 16 measuring electrode, which can be installed directly or via a test chamber to enable electronic monitoring of condensate accumulation and steam leakage.

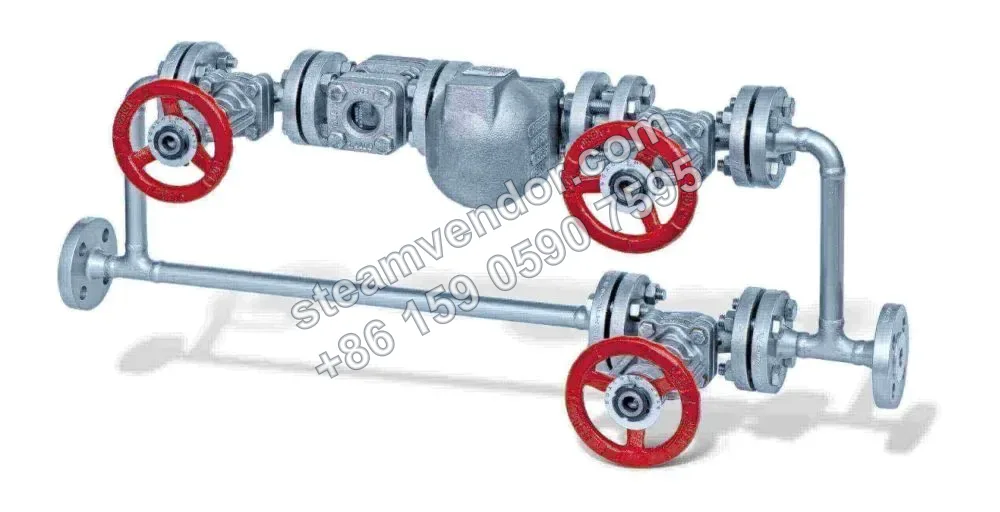

Product photo of Gestra QuickEM steam trap module with handwheel
1 / 1
QuickEM Drain Module | Gestra
Pre-assembled flanged drain module, available with BK, MK or UNA steam traps and bypass.
Genuine product assurance
We can help verify product data and purchasing details.
Model confirmation
Confirm model, connection and key options before ordering.
After-sales support
After-sales communication support is provided according to the order agreement.
Specifications
- Nominal size
- DN 15, DN 20, DN 25, DN 40, DN 50
- Pressure rating
- PN 16, PN 40
- Connection type
- Flanged connection, EN 1092-1 B1
- Installation orientation
- Horizontal or vertical installation; QuickEM Control equipped with a UNA... steam trap is limited to horizontal installation
- Bypass configuration
- With or without bypass piping
- Steam trap configuration
- BK..., MK... or UNA... Duplex; optional orifice plates 4, 13, 22
- Condensate monitoring
- QuickEM Control is equipped with an NRG 16... measuring electrode for monitoring condensate accumulation and steam leakage
- Measuring electrode installation
- With BK 45, MK 45 or UNA 4..., the electrode is installed directly in the steam trap; with BK 15, MK 25 or UNA 1..., the electrode is installed in the VKE test chamber
- Body materials
- Carbon steel version: pipes and fittings in P235GH; stainless steel version: pipes and fittings in 1.4571
- Pressure, temperature and pH limits
- Carbon steel PN16: pH≤9, 16.0 barg@20°C, 14.4 barg@100°C, 12.8 barg@200°C, 11.2 barg@250°C, 9.6 barg@280°C; carbon steel PN40: pH≤10, 40.0 barg@20°C, 37.3 barg@100°C, 30.0 barg@200°C, 28.4 barg@250°C, 25.8 barg@300°C; stainless steel PN16: pH≤7, 16.0 barg@20°C, 12.5 barg@100°C, 10.0 barg@200°C, 9.0 barg@250°C, 9.0 barg@280°C; stainless steel PN40: pH≤7, 40.0 barg@20°C, 32.5 barg@100°C, 25.0 barg@200°C, 23.0 barg@250°C, 21.0 barg@280°C
- Measuring electrode temperature limit
- When QuickEM Control is equipped with NRG 16-27 or NRG 16-28, the maximum permissible temperature is 238°C
- Applicable fluid group
- Group 2 fluids
- Hazardous area limitation
- QuickEM has no inherent potential ignition source; QuickEM Control must not be used in potentially explosive atmospheres
- Inspection certificate
- An EN 10204-3.1 inspection certificate is available upon order
Application scenarios
Condensate discharge from waste heat recovery units
The pre-assembled QuickEM drainage module is used to discharge condensate from waste heat recovery units
Electronic condensate and steam leakage monitoring in waste heat recovery units
QuickEM Control uses NRG 16 series measuring electrodes to electronically monitor condensate accumulation and steam leakage in waste heat recovery units
Installation & maintenance notes
Confirm compatibility between installation orientation and steam trap configuration
When installing QuickEM, confirm the permitted installation orientation according to the actual configuration. Standard QuickEM can be installed horizontally or vertically, whereas QuickEM Control equipped with a UNA... steam trap is limited to horizontal installation.
Verify the flanged connection and mating components
QuickEM uses an EN 1092-1 B1 flanged connection. During on-site installation, confirm that the mating flanges, flange gasket and bolts meet the connection requirements. These mating components are not included in the product supply.
Install the measuring electrode according to the steam trap model
When QuickEM Control is equipped with a BK 45, MK 45 or UNA 4... steam trap, the NRG 16... measuring electrode is installed directly in the steam trap. When equipped with a BK 15, MK 25 or UNA 1... steam trap, the measuring electrode is installed in the VKE test chamber. During installation, confirm that the electrode installation method matches the steam trap model.
FAQ
For which steam-system drainage and condensate removal requirements is Gestra QuickEM suitable?
As a preassembled drainage module, Gestra QuickEM is used for drainage and condensate removal in steam and condensate systems. It helps discharge condensate and reduce steam losses, making it suitable for applications requiring condensate drainage. Specific selection must be confirmed according to the actual operating conditions.
What is the main difference between QuickEM and QuickEM Control?
QuickEM provides basic drainage functionality, combining a steam trap and shut-off valve for drainage and isolation. QuickEM Control additionally provides electronic condensate monitoring, using a measuring electrode to monitor condensate accumulation and steam leakage for online monitoring.
What installation orientation and end-connection requirements should be considered during system installation?
QuickEM/QuickEM Control supports horizontal or vertical installation. The end connections use flanged connections in accordance with EN 1092-1 B1, in DN 15, 20, 25, 40, and 50, with PN 16/PN 40 pressure ratings.
What purchasing and maintenance considerations apply to the electronic monitoring components of QuickEM Control?
QuickEM Control uses NRG 16 series measuring electrodes to monitor condensate accumulation and steam leakage. When configured with specific electrodes, the maximum temperature limit may be affected by electrode limitations. Installation and maintenance of components such as the test chamber must follow the installation manual and relevant certification requirements.
