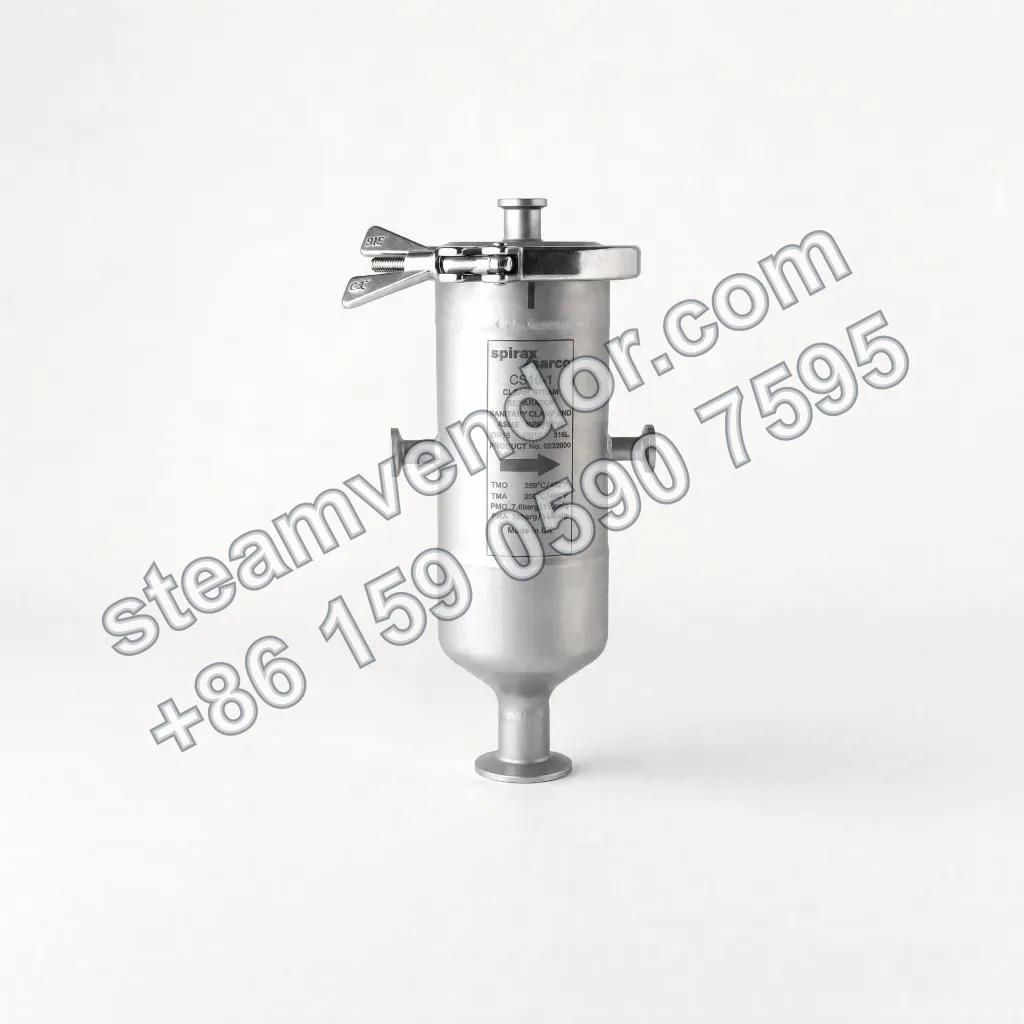

The Spirax Sarco CS10-1 Stainless Steel Clean Steam Separator features a 316L body and is designed in accordance with the ASME BPE hygienic standard, with an internal surface roughness of 0.5 μm. It has a maximum working pressure of 7.6 bar g and is available with either sanitary clamp or extended weld tube connections. Designed specifically for clean or pure steam systems, it effectively separates entrained liquid droplets from steam. Typical applications include steam supply lines to sterilization equipment, distribution headers, and liquid removal upstream of control valves and instrumentation.
CS10-1 Stainless Steel Clean Steam Separator | Spirax Sarco
1 / 1
CS10-1 Stainless Steel Clean Steam Separator | Spirax Sarco
Clean steam separator for liquid removal from sterilization equipment and distribution pipelines, with sanitary clamp connection options.
Genuine product assurance
We can help verify product data and purchasing details.
Model confirmation
Confirm model, connection and key options before ordering.
After-sales support
After-sales communication support is provided according to the order agreement.
Specifications
- Design Standard
- ASME BPE-2005
- Pressure Equipment Directive
- 97/23/EC
- Maximum Allowable Pressure
- 10 bar g @ 50°C
- Maximum Allowable Temperature
- 250°C
- Minimum Allowable Temperature
- -10°C
- Maximum Operating Pressure
- 7.6 bar g
- Maximum Operating Temperature
- 250°C @ 6.8 bar g
- Minimum Operating Temperature
- 0°C
- Maximum Cold Hydraulic Test Pressure
- 15 bar g
- Internal Surface Roughness
- 0.5 μm (20 micro-inch) / SF5
- External Surface Roughness
- 1.6 μm, grit blasted
- Steam Connection Sizes
- 1/2", 3/4", 1", 1 1/2", 2"
- Steam Connection Types
- Sanitary clamp ASME BPE (Tri-clamp) / DIN32676; extended weld tube ASME BPE / DIN 11850
- Drain Connection
- 1" ASME BPE (Tri-clamp)
- Vent Connection
- 1/2" ASME BPE (Tri-clamp)
- Body Material
- Stainless steel ASTM A312/A240/A276 316L
- Cover and Baffle Materials
- Stainless steel ASTM A240/A276 316L
- Seal Material
- Viton
- Gasket Standard
- FDA 21 CFR 177.2600
- USP VI Grade
- 1/2", 3/4", 1" compliant with USP VI
Application scenarios
Liquid Removal from Clean Steam Supply Lines to Sterilization Equipment
Installed in the clean or pure steam supply line leading to sterilization equipment, it separates entrained liquid droplets from the steam, improves steam dryness, and reduces the impact of wet steam on sterilization performance.
Liquid Removal from Clean Steam Distribution Headers and Branch Lines
Installed in the main or branch lines of clean or pure steam distribution systems, it removes entrained liquid droplets from the steam and reduces the amount of wet steam entering downstream points of use or equipment.
Liquid Removal Upstream of Clean Steam Control Valves and Instruments
Installed upstream of control valves and measuring instruments in clean or pure steam systems, it separates entrained liquid droplets and reduces the risk of damage to control valves and instruments caused by wet steam.
Selection points
ASME BPE Sanitary Design and 316L Stainless Steel Clean Surfaces
Designed in accordance with ASME BPE-2005, with the body, cover, and baffle manufactured from 316L stainless steel. The maximum internal surface roughness is 0.5 μm (SF5).
Sanitary Connections and Port Configuration
Steam connections cover sizes from 1/2" to 2". Options include ASME BPE (Tri-clamp) / DIN32676 sanitary clamps or extended weld tubes complying with ASME BPE / DIN 11850. The drain connection is a 1" ASME BPE sanitary clamp, and the vent connection is a 1/2" ASME BPE sanitary clamp.
Pressure and Temperature Limits
The maximum operating pressure is 7.6 bar g. The maximum operating temperature is 250°C at 6.8 bar g, and the maximum cold hydraulic test pressure is 15 bar g.
Seal and Biocompatibility Compliance
The seal material is Viton, and the gasket complies with FDA 21 CFR 177.2600. The 1/2", 3/4", and 1" sizes comply with USP VI.
Quality Documents at the Ordering Stage
An EN 10204 3.1 material certificate, passivation certificate, and welding certificate can be specified when ordering.
Installation & maintenance notes
Verify Operating Pressure and Temperature Conditions
Before installation or commissioning, confirm that the system pressure and temperature are within the specified range for the CS10-1. The maximum allowable pressure is 10 bar g @ 50°C, the maximum allowable temperature is 250°C, and the maximum operating pressure must not exceed 7.6 bar g.
FAQ
What is the primary function of the CS10-1 clean steam separator?
The CS10-1 removes liquid droplets from clean and pure steam systems, improves steam dryness, and reduces the impact of wet steam on sterilization performance, control valves, instruments, and system efficiency.
What conditions should be considered when selecting a CS10-1?
Selection should take account of connection size, steam pressure, flow rate, velocity, pressure drop, and piping configuration. The maximum pressure and temperature of sanitary clamp connections are also limited by the gaskets and clamps used. The specific configuration must be confirmed according to the actual model and application conditions.
What piping connection sizes are available for the CS10-1?
The steam inlet and outlet are available with 1/2", 3/4", 1", 1 1/2", and 2" sanitary clamp connections complying with ASME BPE or DIN 32676. Extended weld tubes complying with ASME BPE or DIN 11850 are also available. The drain connection is a 1" ASME BPE sanitary clamp, and the vent connection is a 1/2" ASME BPE sanitary clamp.
What are the pressure and temperature limits of the CS10-1?
The body design rating is PN10. The maximum allowable pressure is 10 bar g at 50°C, the maximum operating pressure is 7.6 bar g, the maximum allowable temperature is 250°C, the maximum operating temperature is 250°C at 6.8 bar g, and the minimum operating temperature is 0°C.
What should be considered when installing the CS10-1?
The separator should be installed in a horizontal pipeline, with the arrow pointing in the direction of media flow. During installation and maintenance, protect the body and internal surfaces carefully to prevent surface damage.
