The Spirax Sarco FTC32 series comprises carbon steel float steam traps that continuously discharge condensate using a mechanical float principle and incorporate an automatic air vent. With a maximum working pressure of 32 bar g and an operating temperature range of 0°C to 300°C, they are available with threaded, socket weld, and flanged connections for condensate drainage from steam-heated process equipment operating under fluctuating pressure and load conditions.

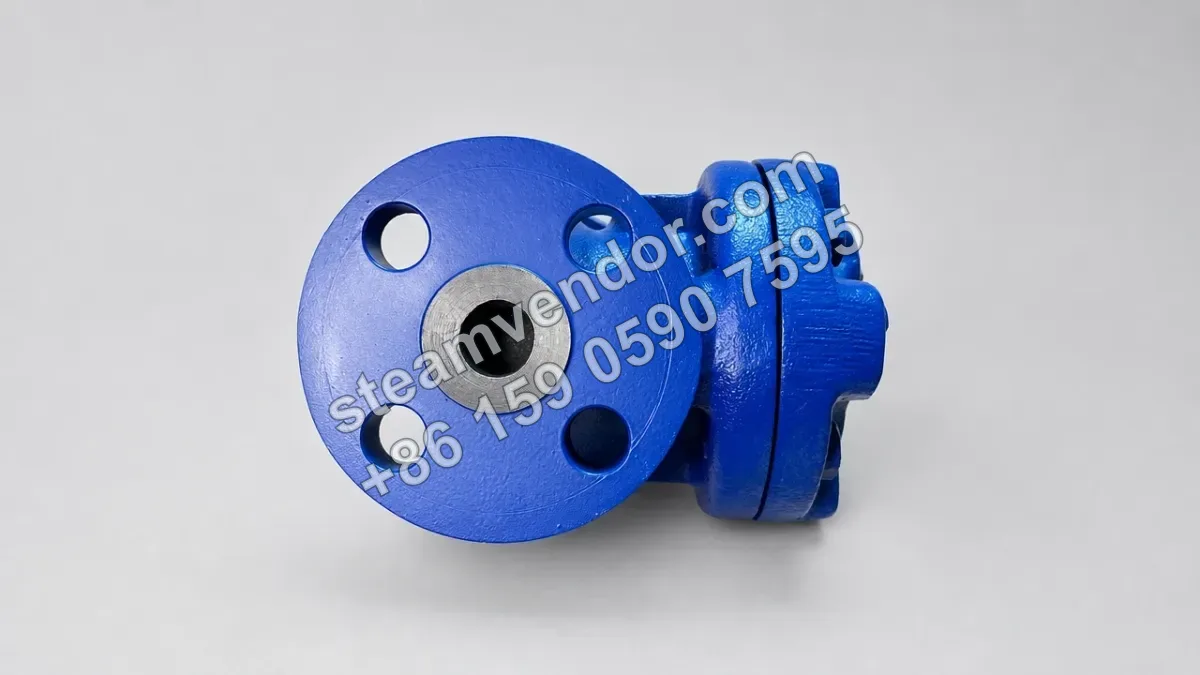

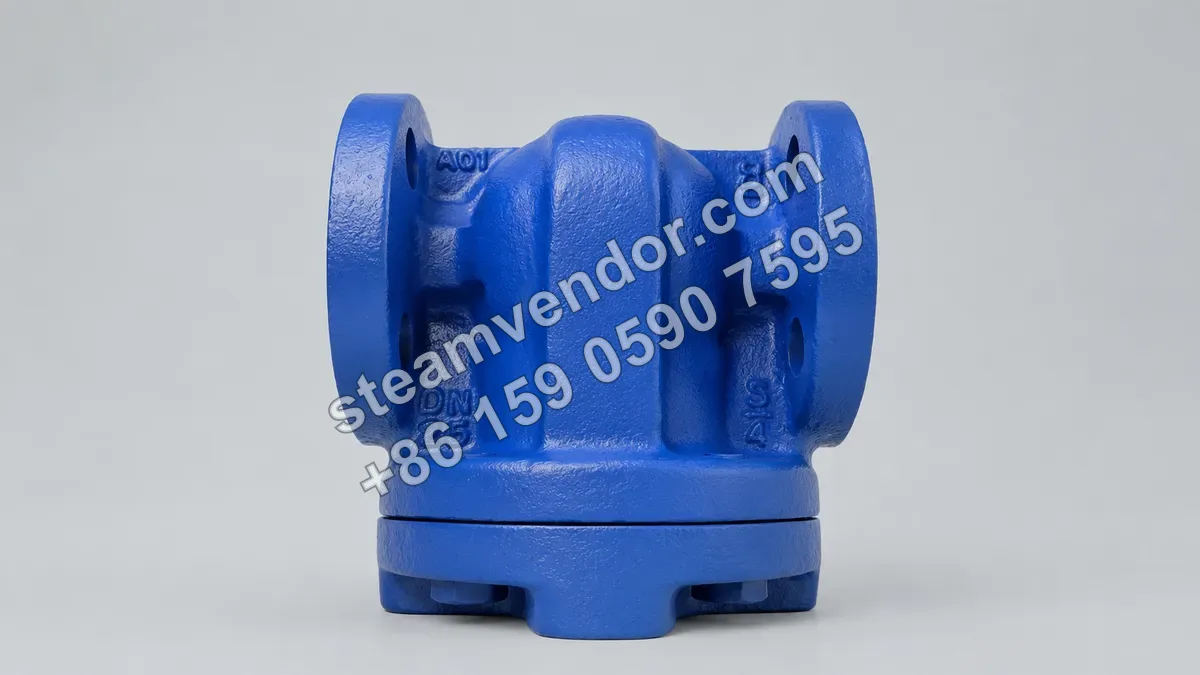

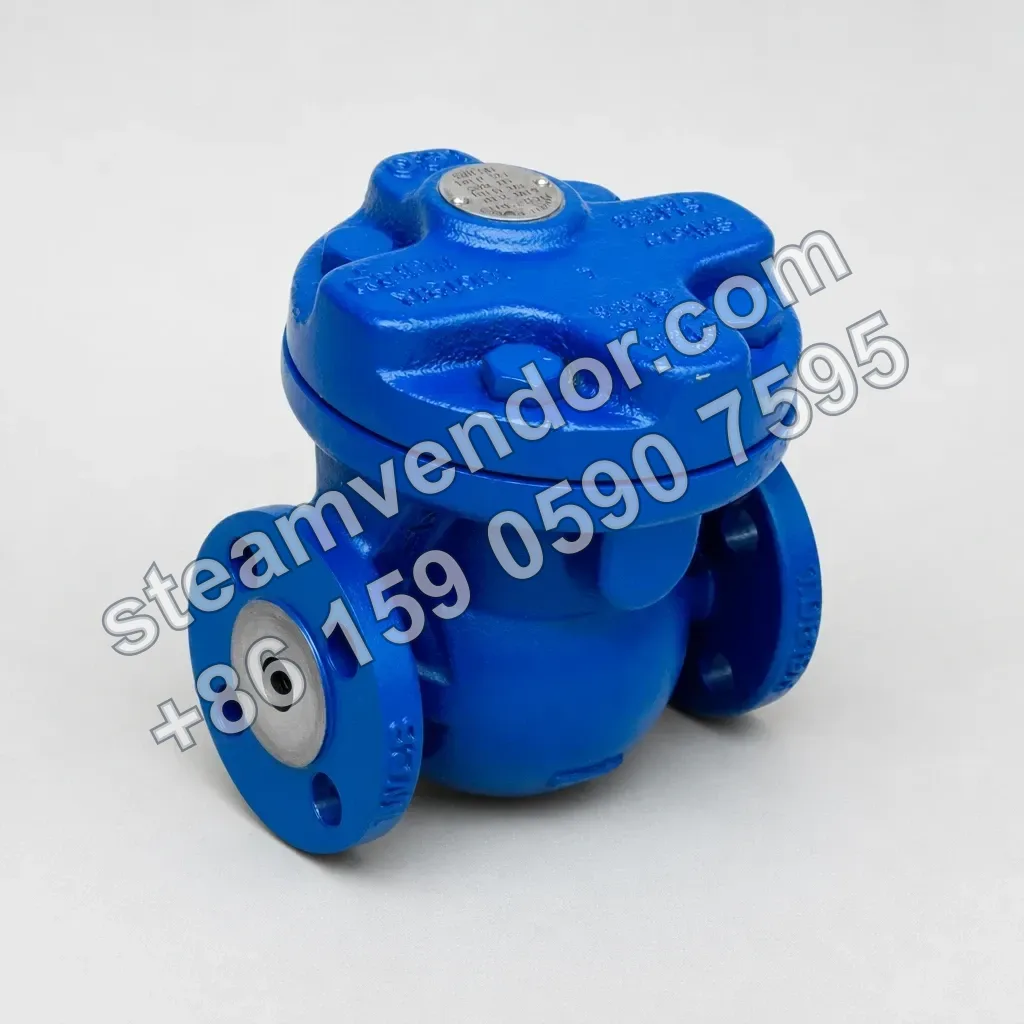

FTC32 Product Image 3
1 / 3
Spirax Sarco FTC32 Carbon Steel Float Steam Trap
Carbon steel float steam trap for process condensate drainage, with optional strainer and check valve.
Select model
Genuine product assurance
We can help verify product data and purchasing details.
Model confirmation
Confirm model, connection and key options before ordering.
After-sales support
After-sales communication support is provided according to the order agreement.
Models
FTC32 is the base model in the carbon steel ball float steam trap series, designed for horizontal installation with right-to-left flow when viewed from the bottom of the valve. FTC32(L-R) is for horizontal installation with left-to-right flow, while FTC32V is for vertical installation with upward or downward flow. FTC32-C adds a manually adjustable needle valve to the base configuration for steam lock release. FTC32X adds an internal strainer, and FTC32CV adds an internal check valve. When selecting a model, first choose FTC32, FTC32(L-R), or FTC32V according to the installation orientation and standard flow direction. Then select FTC32-C, FTC32X, or FTC32CV based on steam lock risk, contamination conditions, and condensate backflow risk, and confirm the configuration according to the required connection type, maximum differential pressure, and pressure-temperature conditions.
FTC32Standard Carbon Steel Ball Float Steam Trap
FTC32 is the base model in the FTC32 series. It uses a carbon steel body and a ball float mechanical discharge mechanism to remove condensate, with an integral automatic air vent. This model is available with threaded, socket weld, and flanged connections. Standard horizontal flow is right to left when viewed from the bottom of the valve.
FTC32VCarbon Steel Ball Float Steam Trap for Vertical Installation
FTC32V is the vertical connection model in the FTC32 series. It retains carbon steel ball float condensate discharge and integral automatic air venting, and is suitable for vertical installation with upward or downward flow.
FTC32(L-R)Carbon Steel Ball Float Steam Trap with Left-to-Right Flow
FTC32(L-R) is the horizontal connection model in the FTC32 series. It uses a carbon steel ball float condensate discharge design with an integral automatic air vent, changing the horizontal flow direction from left to right compared with the standard FTC32.
FTC32-CCarbon Steel Ball Float Steam Trap with Manually Adjustable Needle Valve
FTC32-C adds a manually adjustable needle valve to the FTC32 base model. In addition to automatic air venting, it provides steam lock release functionality.
FTC32XCarbon Steel Ball Float Steam Trap with Internal Strainer
FTC32X adds an internal strainer to the FTC32 base model while retaining ball float mechanical condensate discharge and integral automatic air venting, providing in-valve filtration.
FTC32CVCarbon Steel Ball Float Steam Trap with Internal Check Valve
FTC32CV adds an internal check valve to the FTC32 base model while retaining ball float mechanical condensate discharge and integral automatic air venting, providing protection against condensate backflow.
Specifications
- Product Type
- Float steam trap
- Operating Principle
- Mechanical condensate discharge by float
- Automatic Air Venting
- Built-in automatic air vent
- Connection Sizes
- 1/2", 3/4", DN15, DN20
- Connection Types
- Threaded, socket weld, and flanged connections
- Thread Standards
- BSP, NPT
- Socket Weld Standards
- BS 3799 Class 3000, ANSI B16.11 Class 3000
- Flange Standards
- EN 1092 PN40, ANSI B16.5 Class 150 and Class 300, JIS/KS 20K and 30K
- Installation Orientation
- Horizontal or vertical installation; vertical installation may be oriented upward or downward
- Standard Flow Direction
- Horizontally from right to left (viewed from the bottom of the valve); left-to-right flow available as an option
- Maximum Operating Pressure
- 32 bar g
- Maximum Allowable Body Pressure
- PN: 40 bar g; ANSI: 50 bar g
- Maximum Allowable Temperature
- 400°C
- Maximum Operating Temperature
- 300°C
- Operating Temperature Range
- 0°C to 300°C
- Maximum Differential Pressure
- 4.5 bar, 10 bar, 14 bar, 21 bar, or 32 bar, depending on the specific configuration
- Body Material
- Carbon steel, ASTM A216 WCB or DIN 17245 GS C25N
- Float and Linkage Material
- Stainless steel, BS 1449 304 S11
- Seal Material
- EPDM
- Optional Features
- Manual regulating needle valve, anti-air-binding device, internal strainer, check valve; EN 10204 3.1 certification available
Application scenarios
Condensate Drainage from Steam-Heated Process Equipment
Used at the condensate outlet of steam-heated process equipment. It discharges condensate through a mechanical float mechanism under fluctuating pressure and load conditions, while the built-in automatic air vent removes air.
Selection points
Select by Maximum Differential Pressure Rating
FTC32 is available with maximum differential pressure ratings of 4.5 bar, 10 bar, 14 bar, 21 bar, or 32 bar, selected according to the actual system differential pressure.
Horizontal and Vertical Installation with Flow Direction Options
The standard product configuration is horizontal installation with right-to-left flow. FTC32(L-R) is available for left-to-right horizontal flow, while FTC32V models can be installed vertically with upward or downward flow.
Automatic Air Venting and Steam Lock Release Configuration
The product features an integral automatic air vent and can be supplied as FTC32-C with a manually adjustable needle valve for steam lock release.
Multiple Pipeline Connection Standards
The product is available with 1/2 in. and 3/4 in. threaded or socket weld connections, as well as DN15 and DN20 flanged connections, covering BSP, NPT, EN, ANSI, and JIS/KS connection standards.
Optional Internal Strainer and Check Valve
The product can be supplied with an optional internal strainer or check valve, designated FTC32X and FTC32CV respectively.
Installation & maintenance notes
Confirm Installation Orientation and Flow Direction for the Specific Model
Installation orientation and flow direction must correspond to the selected FTC32 configuration. The standard horizontal model has right-to-left flow, FTC32(L-R) provides left-to-right horizontal connections, and FTC32V can be installed vertically with upward or downward flow.
Verify the Maximum Differential Pressure for the Specific Configuration
Before installation, confirm that the actual system differential pressure does not exceed the maximum differential pressure of the purchased FTC32 configuration. The maximum differential pressure can be 4.5 bar, 10 bar, 14 bar, 21 bar, or 32 bar, depending on the specific configuration.
FAQ
What functions does the FTC32 float steam trap provide?
The FTC32 is a carbon steel float steam trap with a built-in automatic air vent. It is suitable for condensate removal in process applications and can handle fluctuating pressure and load conditions.
What sizes and connection options are available for the FTC32?
Threaded and socket weld connections are available for 1/2-inch and 3/4-inch sizes; flanged connections are available for DN15 and DN20. Threaded connections can be specified with BSP or NPT. Socket weld connections comply with BS 3799 Class 3000 and ANSI B16.11 Class 3000. Flanged connections are available to EN 1092 PN40, ANSI B16.5 Class 150 and Class 300, and JIS/KS 20K and 30K.
What optional models and configurations are available for the FTC32?
FTC32(L-R) provides horizontal left-to-right flow, FTC32V is configured for vertical connection, FTC32-C includes a manual regulating needle valve, FTC32X includes an internal strainer, and FTC32CV includes a check valve. The specific configuration must be confirmed according to the actual model and application conditions.
What are the main pressure and temperature limits of the FTC32?
The maximum valve body design rating is PN40/ANSI 300. The maximum allowable pressure is 40 bar g for PN-rated versions and 50 bar g for ANSI-rated versions. The maximum allowable temperature is 400°C, the maximum operating pressure is 32 bar g, the maximum operating temperature is 300°C, and the minimum allowable and operating temperature is 0°C. The specific configuration must be confirmed according to the actual model and application conditions.
What precautions apply during FTC32 installation and pressure testing?
The standard connection flow direction is horizontally from right to left. Horizontal left-to-right flow and vertical connection are also available as options. The product can be serviced in the pipeline. After internal components have been installed, the test pressure must not exceed 48 bar, as this may damage the internal components. EN 10204 3.1 certification is available upon request.
