The Bray 3HP Series comprises 316 stainless steel, three-way L-port multiport ball valves for high-pressure instrument tubing from 1/4" to 1". With a maximum working pressure of 6,000 psi, these valves feature PVDF seats for zero-leakage sealing, standard NPT connections, and optional compression fittings. Suitable for switching and diverting high-pressure fluid or gas measurement circuits and sampling branches, they comply with NACE requirements.

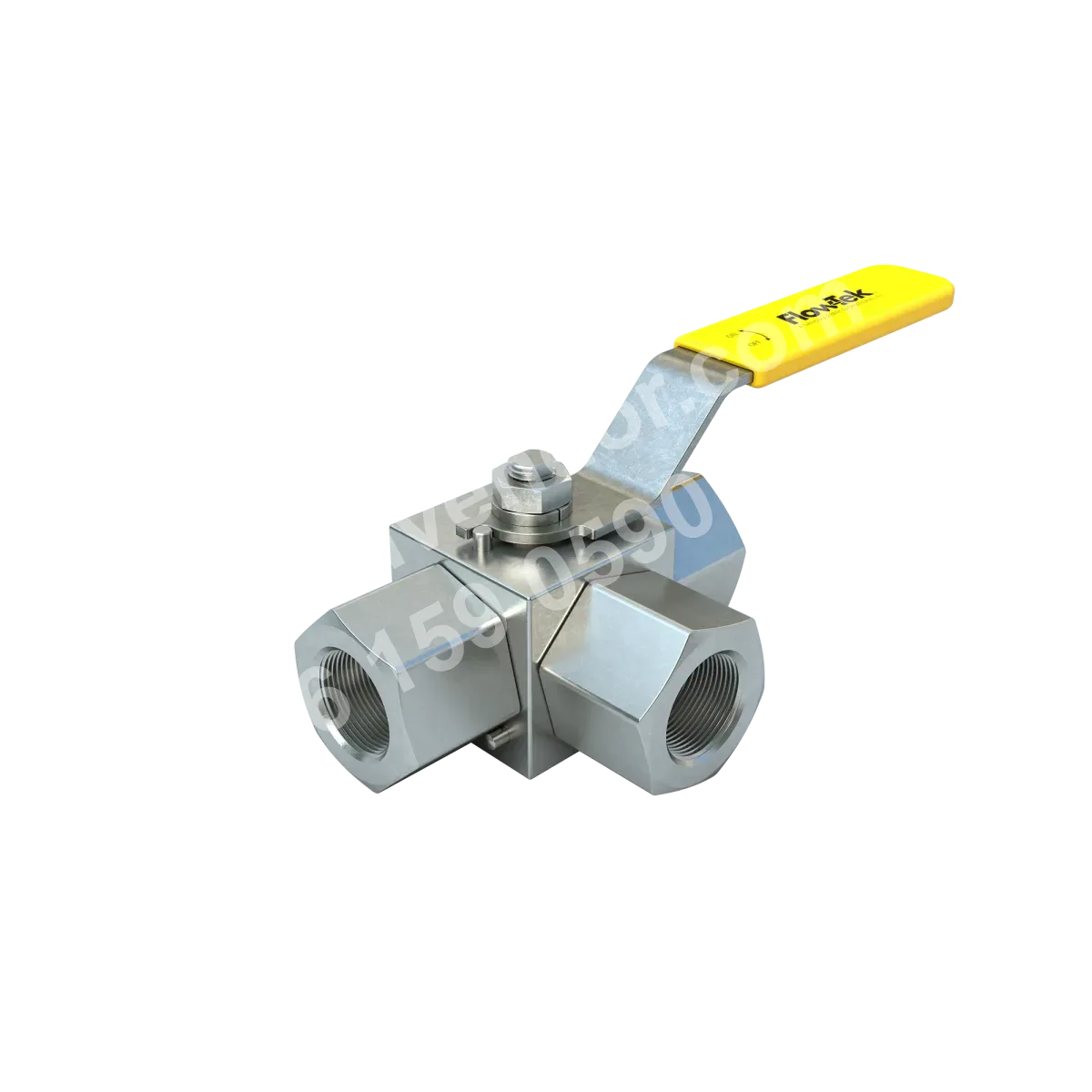

Multiport Ball Valve 3HP Series Product Image
1 / 2
Bray 3HP Series Multiport Ball Valve, 316 Stainless Steel, 6000psi
316 stainless steel three-way ball valve for switching high-pressure instrument measurement circuits, rated at 6000 psi.
Genuine product assurance
We can help verify product data and purchasing details.
Model confirmation
Confirm model, connection and key options before ordering.
After-sales support
After-sales communication support is provided according to the order agreement.
Specifications
- Size Range
- ¼" - 1" (8mm - 25mm)
- Maximum Working Pressure
- 6,000 psi (413 bar)
- Operating Temperature Range
- -40°F to 280°F (-40°C to 138°C)
- Body Material
- 316 stainless steel
- Seat Material
- PVDF
- Leakage Class
- Zero leakage
- Valve Body Type
- 3-way
- Port Type
- L-port
- End Connections
- NPT (standard), compression fittings (optional)
- Design Standard
- ASME B16.34
- Test Standard
- API 598
- NACE Standard
- Compliant with NACE requirements
Application scenarios
High-Pressure Fluid Instrumentation Measurement Circuit Switching
Installed in high-pressure fluid instrumentation measurement lines to switch measurement branches via three-way L-port configurations. This series is designed for high-pressure fluid measurement instruments, with sizes ranging from 1/4 inch to 1 inch, a maximum working pressure of 6000 psi, and a zero-leakage design.
High-Pressure Gas Measurement Instrument Sampling Branch Switching
Installed in sampling or connection lines of high-pressure gas measurement instruments to switch gas measurement branches via three-way L-port configurations. This series is specifically intended for high-pressure gas measurement instruments, with a maximum working pressure of 6000 psi, 90-degree rotary operation, and zero-leakage sealing.
NACE-Compliant High-Pressure Instrumentation Lines
Installed in high-pressure fluid or gas instrumentation lines requiring NACE compliance for switching or diverting instrument media. The product features a 316 stainless steel valve body, complies with NACE requirements, and is intended for high-pressure fluid and gas measurement applications with a maximum working pressure of 6000 psi.
Selection points
6000 psi High-Pressure Instrumentation Applications
This 3HP Series three-way ball valve is rated for pressures up to 6000 psi (413 bar) and is designed for high-pressure fluid and gas measurement instrumentation applications.
Three-Way L-Port Switching
The valve features a three-way L-port configuration for flow switching and routing in high-pressure instrumentation piping.
316 Stainless Steel, NACE Compliance, and Material Traceability
The standard valve body is manufactured from 316 stainless steel and complies with NACE requirements. The body is marked with a heat-treatment code to support material traceability.
Blowout-Proof Stem and Protection Against Accidental Disassembly
The valve features an internally installed blowout-proof stem and safety measures to prevent accidental loosening or removal of pin-connected ports.
Optional Actuator Mounting Configuration
This series is available with optional actuator mounting hardware, enabling actuator integration according to instrumentation system control requirements.
Installation & maintenance notes
Observe Pressure and Temperature Operating Limits
The maximum allowable working pressure of this valve is 6000 psi (413 bar), and the operating temperature range is -40°C to 138°C. Confirm that system operating conditions do not exceed these limits during installation and use.
Verify Piping Connections According to the Three-Way L-Port Configuration
This product is a three-way L-port ball valve. Before installation, confirm the flow connections corresponding to each port and valve position based on process requirements to prevent incorrect piping as a non-L-port flow path.
Confirm End Connection Compatibility with the Piping System
The valve is supplied with NPT end connections as standard, with optional compression fittings. During installation, confirm that the actual end connection type of the delivered valve matches the piping connection requirements.
FAQ
How does the 3HP Series multiport ball valve work?
The 3HP Series uses a floating-ball design and a three-way configuration to provide a measurement path for gas or liquid media. The ball rotates 90° inside the valve body to open or close the flow path. Its bubble-tight sealing design ensures reliable performance under high-pressure conditions and supports zero-leakage operation.
What are the key technical selection criteria for this valve series?
When selecting a valve, consider the size range (¼"-1"), rated pressure of 6,000 psi (413 bar), NPT end connections with optional compression fittings, the stainless steel body with other materials available as options, and the PVDF seat material to match high-pressure instrumentation requirements and media compatibility.
What advantages does the 3HP Series offer over other three-way ball valves?
It features a NACE-compliant 316 stainless steel construction, an ASME B16.34-compliant design, API 598-tested performance, and safety features including an internal blowout-proof stem and locking and service components, improving reliability and maintainability in high-pressure instrumentation applications.
What are the common applications for this series?
The series is suitable for high-pressure instrumentation used in fluid and gas measurement applications, particularly where precise control and switching are required, together with corrosion-resistant materials and traceability for demanding operating conditions.
What should be considered when maintaining or replacing components?
The valve includes an internal blowout-proof design and a locking mechanism. During maintenance, follow the manufacturer's disassembly and assembly procedures, and verify the interchangeability of the body material and piston or seat components to ensure sealing performance and functionality. The specific configuration should be confirmed according to the actual model and application conditions.
