Bray Resolute Ball™ valve accessories for direct engineered replacement on F15/F30 and RF15/RF30 series valves. Compatible with sizes from DN15 to DN300 and compliant with API 641 and ISO 15848 standards, they can reduce wear by up to 70%, making them suitable for maintenance and replacement of existing valves.

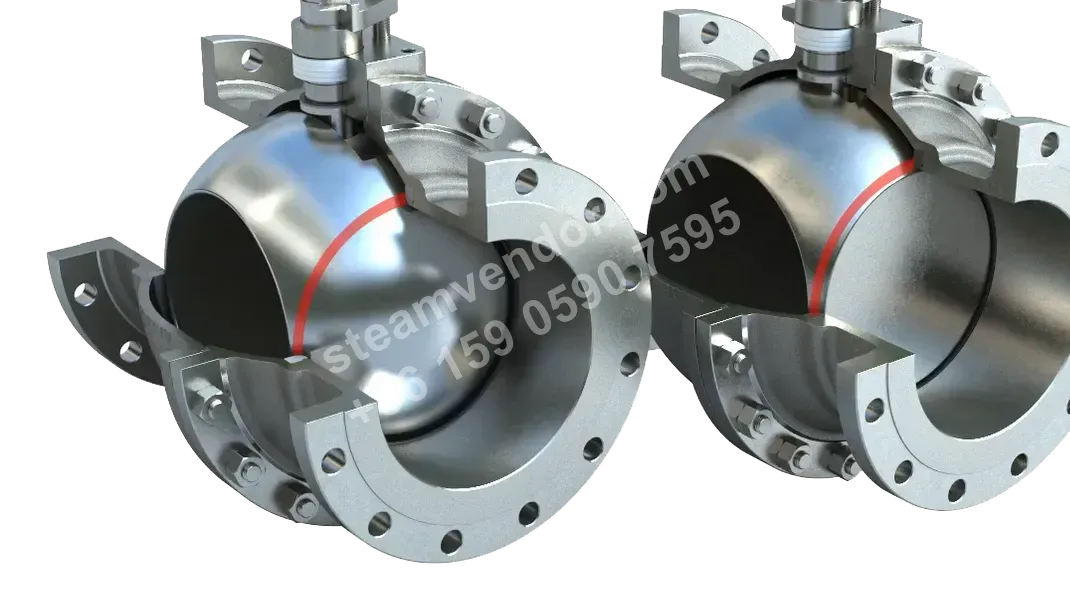

Resolute Ball™ product image
1 / 9
Bray Resolute Ball™ Ball Valve Replacement Parts
Ball valve replacement parts for scaling media service, supporting direct engineering replacement
Genuine product assurance
We can help verify product data and purchasing details.
Model confirmation
Confirm model, connection and key options before ordering.
After-sales support
After-sales communication support is provided according to the order agreement.
Specifications
- Standards Compliance
- API 641; ISO 15848
- Replacement Type
- Direct engineered replacement
- Compatible Valve Series
- F15/F30 Series; RF15/RF30 Series
- Applicable Size Range
- F15/F30 Series: 1/2" - 12" (DN 15 - DN 300); RF15/RF30 Series: 1" - 12" (DN 25 - DN 300)
- Wear Reduction
- Up to 70%
Selection points

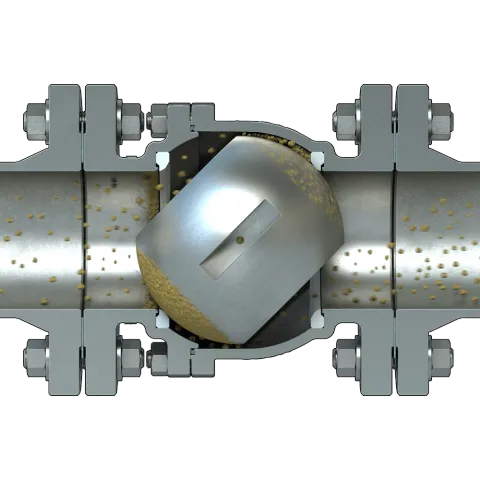

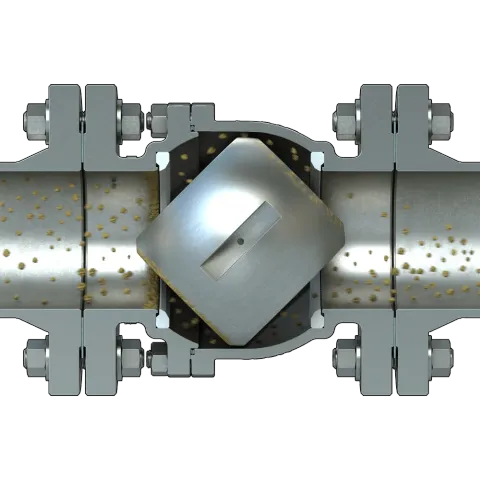

Low-Contact Anti-Scaling Ball Geometry
Resolute Ball™ features a specialized ball geometry that minimizes contact between the ball and seat after approximately 10 degrees of rotation. It is suitable for applications where scale or deposits can accumulate on the ball surface after extended idle periods.
Reduced Seat Wear Caused by Deposited Particles

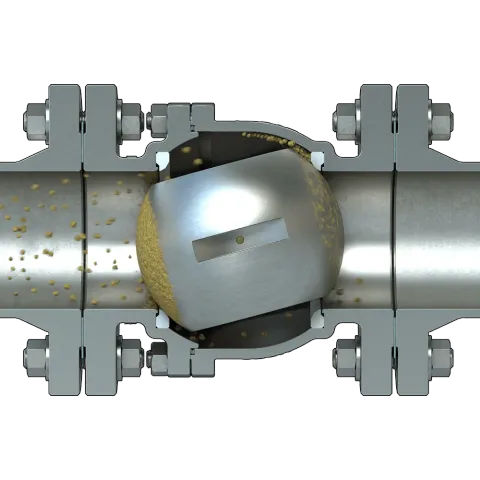

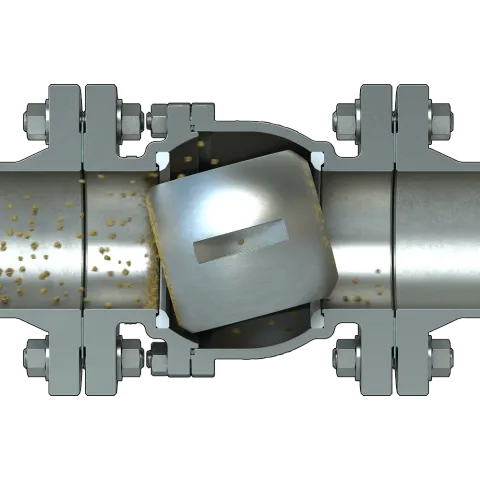

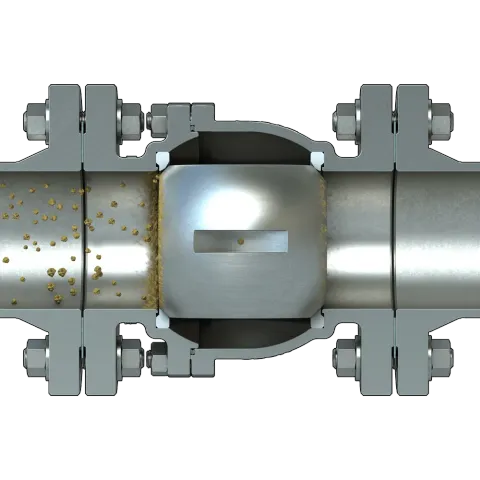

This geometry allows accumulated media particles to pass between the ball and seat, reducing wear caused when particles pass through the seat sealing area. The documentation states that wear can be reduced by up to 70%.
Compatible with Bray F15/F30 and RF15/RF30 Direct Replacement
Resolute Ball™ can be used as an engineered direct replacement for Bray F15/F30 and RF15/RF30 series ball valves, suitable for retrofitting existing compatible valves or selecting replacement parts.
Compliant with API 641 and ISO 15848 Standards
Product documentation states that Resolute Ball™ valve designs comply with API 641 and ISO 15848 standards, providing a reference for compliance verification in relevant projects.
Installation & maintenance notes
Verify Compatible Valve Series and Size
Resolute Ball™ is an engineered direct replacement component for F15/F30 and RF15/RF30 series ball valves. Before installation, confirm component compatibility based on the valve series and size at the installation site.
FAQ
How does the Resolute Ball™ valve work?
Through its specialized geometric design, Resolute Ball™ significantly reduces contact between the ball and seat after 10 degrees of rotation, minimizing wear on sealing surfaces caused by media particles and enabling smoother quarter-turn operation and longer service life.
What technical advantages does this valve offer for selection?
Its unique geometric structure allows accumulated scale particles to pass between the ball and seat, reducing wear by up to 70% while delivering lower operating torque, higher reliability, and lower total cost of ownership. The size range covers the F15/F30 and RF15/RF30 Series for a wide range of operating conditions.
In which applications does Resolute Ball™ provide the greatest value?
It is particularly suitable for pulp production, mining, petrochemical, and refining applications involving scaling media, effectively reducing valve sticking and sealing issues caused by scale.
What are the valve's dimensions and compatibility?
The F15/F30 Series is available in sizes from 1/2"-12" (DN15-DN300), while the RF15/RF30 Series is available from 1"-12" (DN25-DN300). It can directly replace the corresponding standard ball valve series and is compatible with the F15/F30 and RF15/RF30 Series.
How should initial selection, installation, and maintenance requirements be evaluated?
Compare the F15/F30 and RF15/RF30 Series based on the process medium, pressure, connection type, and installation space, prioritizing direct replacement compatibility with the existing flange type and series. Specific configurations must be confirmed according to the actual model and application conditions.
