Bray S7500/S7700 Three-Piece High-Purity Ball Valve

High-purity three-piece ball valve for sanitary process piping, available with TFM 1600 seats.

Genuine product assurance

We can help verify product data and purchasing details.

Model confirmation

Confirm model, connection and key options before ordering.

After-sales support

After-sales communication support is provided according to the order agreement.

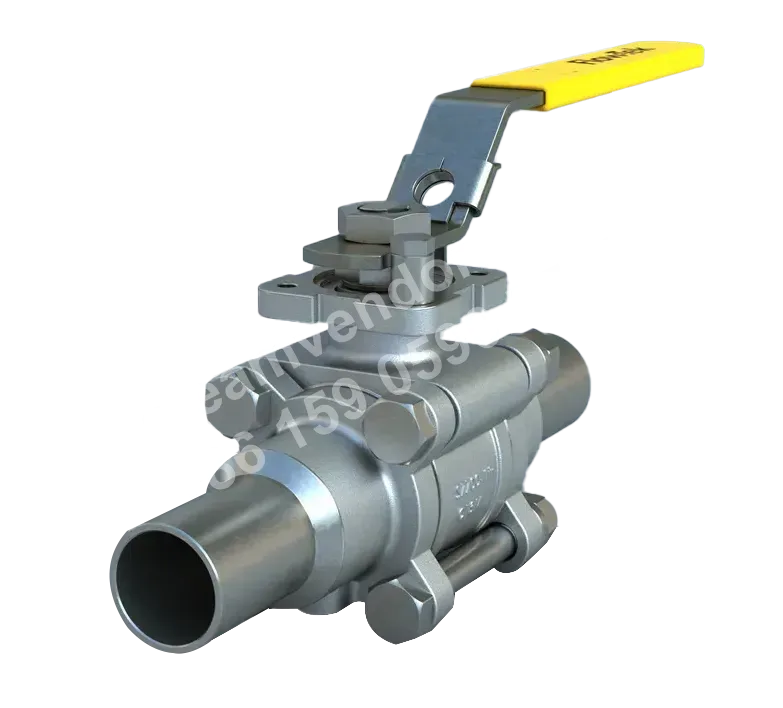

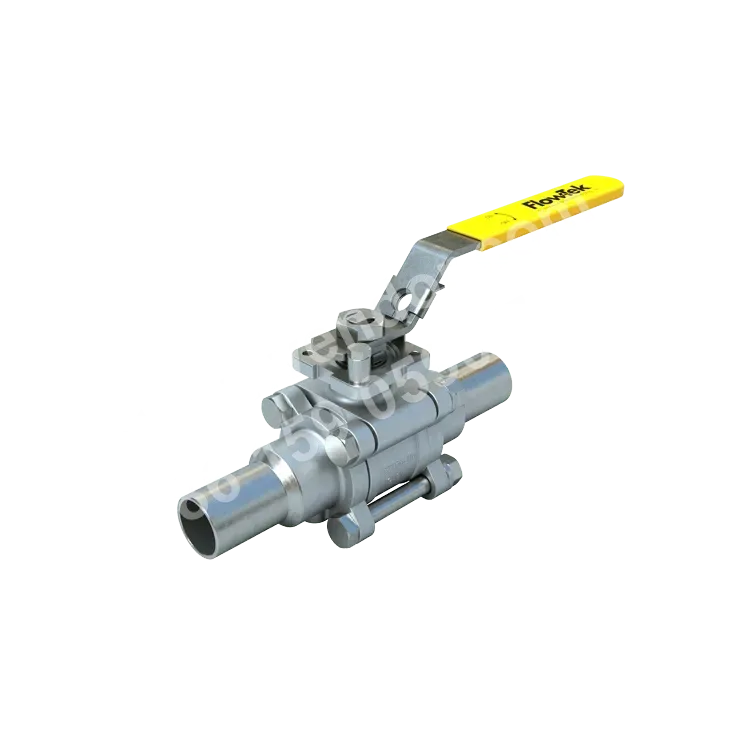

Bray S7500/S7700 are three-piece high-purity ball valves available in sizes from ½–4 inches, featuring CF3M bodies and balls with 316 stainless steel stems. PTFE seats are standard, with optional TFM 1600, UHMWPE, and cavity fillers. With a maximum allowable operating pressure of 1000 psi WOG, they are designed for on/off isolation in hygienic process piping for pharmaceutical and biotechnology, semiconductor, and food and beverage applications.

Specifications

Body Construction

3-piece

Size Range

½ - 4" (12 - 100mm)

Body Material

CF3M

Ball Material

CF3M

Stem Material

316

Seat Material

Standard: PTFE; Optional: TFM 1600, UHMWPE, cavity fillers

Operating Temperature Range

-50°F to 450°F (-46°C to 232°C)

Maximum Allowable Operating Pressure

1000psi WOG

Steam Pressure Rating

150psi WSP

Leakage Class

Zero leakage

End Connections

Quick clamps, extended tube ends, SAE male connections

Surface Finish

15 Ra to 30 Ra

Design Standard

ASME BPEa

Test Standard

MSS SP 61

Material Certification

USP Class VI

Application scenarios

Pharmaceutical and Bioprocess Aseptic Process Piping

Suitable for isolation in high-purity, aseptic process piping in pharmaceutical and bioprocess applications. The product complies with the ASME BPEa design standard, uses USP Class VI certified materials, and features a surface finish of 15 Ra to 30 Ra and a zero-leakage sealing rating.

Semiconductor High-Purity Media Piping

Suitable for on/off isolation in high-purity media transfer and equipment interface piping for semiconductor manufacturing. Product documentation explicitly lists semiconductor applications and provides a surface finish of 15 Ra to 30 Ra and a high-purity ball valve design.

Food and Beverage Hygienic Process Lines

Suitable for hygienic product transfer piping isolation in food and beverage production. Product documentation explicitly lists food and beverage applications, uses FDA-approved and USP Class VI certified materials, and provides a surface finish of 15 Ra to 30 Ra and quick-clamp connections.

Selection points

High-Purity Process Surface Finish

The product surface finish ranges from 15 Ra to 30 Ra, making it suitable for valve selection in sterile and high-purity processes.

USP Class VI Material Compliance

Product documentation specifies USP Class VI material certification and the use of FDA-approved materials, providing a basis for material compliance selection in high-purity and hygienic processes.

Three-Piece Valve Body Design

This series features a three-piece valve body design and can be selected for piping applications requiring a three-piece ball valve configuration.

Multiple End Connection Options

The product is available with quick-clamp, extended tube end, and SAE male end connections, allowing selection to match existing piping interface requirements.

Optional Seat and Cavity Filler Configurations

The product is supplied with PTFE seats as standard, with optional TFM 1600, UHMWPE, and cavity filler configurations available to suit the process medium and operating conditions.

FAQ

How do S7500/S7700 Series 3-piece ball valves operate?

This series of ball valves uses a 3-piece body construction to control flow paths. The ball rotates against the sealing surfaces of the seats to open or close, providing rapid control of high-purity media and zero-leakage sealing.

How should the S7500/S7700 be compared for technical selection?

When selecting a valve, consider the size range (½-4"), CF3M body material, temperature range (-46°C to 232°C), maximum operating pressure of 1000psi WOG, available seat materials, and zero-leakage rating. The specific configuration should be confirmed based on the actual media, temperature, and pressure conditions.

What are the main applications for this ball valve series?

Suitable for high-purity processing, aseptic, semiconductor, food, and beverage applications with stringent hygiene and material compatibility requirements.

What end connection options are available, and how should they be selected?

End connections include quick clamps, extended tube ends, and SAE male connections. Selection should be based on the system piping interface standard and installation space to ensure secure sealing and ease of installation.

What sealing material options are available?

The standard seal is PTFE, with optional TF M 1600, UHMWPE, or cavity fillers to meet media corrosion resistance requirements and temperature conditions. The specific selection should be confirmed based on actual operating conditions.
