The Bray S80 is a two-piece, threaded, full-port stainless steel ball valve designed for manual shutoff and pipeline isolation. It features a CF8M stainless steel body, 316SS ball, RPTFE seats, and a blowout-proof stem, with a maximum working pressure of 1000 psi WOG and a temperature range of -46°C to 232°C. It is suitable for air, water, oil, natural gas, and other compatible media in chemical, textile, and processing equipment applications.

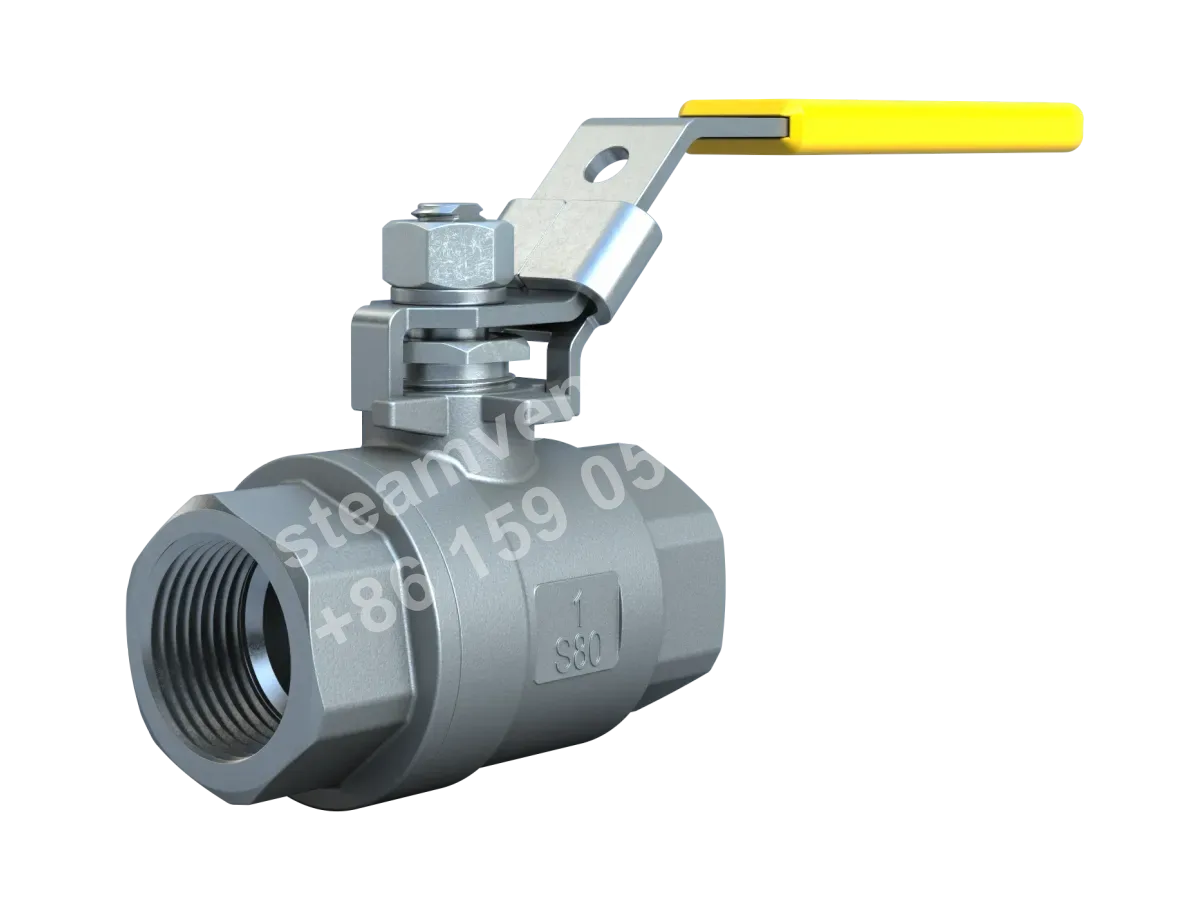

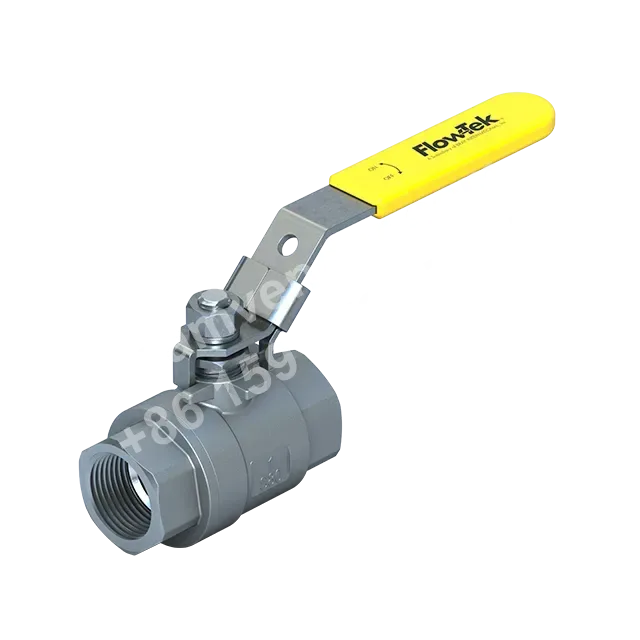

S80 Series threaded ball valve product image
1 / 3
Bray S80 Threaded Full-Port Stainless Steel Ball Valve
Full-port stainless steel ball valve for chemical process isolation, supporting multiple threaded connections.
Genuine product assurance
We can help verify product data and purchasing details.
Model confirmation
Confirm model, connection and key options before ordering.
After-sales support
After-sales communication support is provided according to the order agreement.
Specifications
- Size Range
- ¼ - 4" (8 - 100mm)
- Body Material
- ASTM A351 Gr CF8M
- Operating Temperature Range
- -50°F to 450°F (-46°C to 232°C)
- Maximum Operating Pressure
- 1000 psi WOG (69 bar)
- Leakage Class
- Zero leakage
- Seat Material
- RPTFE
- Ball Material
- 316SS
- Stem Material
- ASTM A479 Type 316
- Port Type
- Full port
- End Connections
- Threaded NPT, BSPT, BSPP
- Body Construction
- Two-piece
- Stem Design
- Blowout-proof
- Stem Packing
- Adjustable
- Design Standard
- MSS SP-110
- Testing Standard
- MSS-SP 72
Application scenarios
Chemical Process Piping Isolation
Used for media shutoff and manual isolation in chemical process piping. The valve body is made of CF8M stainless steel, while the ball and stem are made of Type 316 stainless steel. The full-port design helps provide smooth flow and low pressure drop, and threaded connections facilitate installation.
Textile Processing Equipment Piping Switching
Used for media shutoff and pipeline isolation in production equipment and associated piping in the textile industry. The product is explicitly suitable for the textile industry and offers NPT, BSPT, and BSPP threaded connections. Its full-port design helps maintain smooth flow and low pressure drop.
Auxiliary Pipeline Isolation for Processing Equipment
Used for manual shutoff and isolation of air, water, or other suitable media in processing equipment and associated piping. The two-piece valve body, full-port design, and safety locking handle are suitable for manual field operation.
General-Purpose High-Pressure Fluid Line Shutoff
Used for high-pressure manual shutoff in general-purpose lines handling air, water, oil, and natural gas. The product has a maximum allowable working pressure of 1000 psi WOG, uses threaded connections, and features RPTFE seats with a zero-leakage sealing rating.
Selection points
Full-Port, Low-Pressure-Drop Flow Path
The full-port design and smooth flow path reduce throttling and pressure drop, making it suitable for piping applications where flow retention is important.
Traceable Valve Body Casting Heat Numbers
The two-piece CF8M stainless steel valve body is investment cast and solution annealed. All valve body castings are marked with casting heat numbers for traceability of material batches and quality records.
Multiple Threaded End Connection Standards
Available with NPT, BSPT, and BSPP threaded end connections for compatibility with different piping thread standards.
Blowout-Proof Stem and Adjustable Packing
Features an internally installed blowout-proof stem and adjustable stem packing, providing stem retention protection and packing seal adjustment.
Safety Locking Handle and Optional Oval Handle
Supplied with a stainless steel safety locking handle to help maintain the valve in the set position, with an optional oval handle available.
Installation & maintenance notes
Operating Pressure and Temperature Limits
During installation and operation, site operating temperatures must be maintained within the range of -46°C to 232°C, and the maximum allowable working pressure must not exceed 1000 psi WOG (69 bar).
FAQ
How does the full-port design of the S80 Series threaded ball valve affect flow?
The S80 Series uses a full-port design to provide smooth flow characteristics and minimal pressure drop, ensuring that the flow path through the valve remains unobstructed.
What key points regarding body material and pressure capacity should be considered for this series?
The body material is ASTM A351 Gr CF8M, the maximum allowable operating pressure is 1000 psi WOG, the seat material is RPTFE, the ball material is 316SS, and the stem is ASTM A479 316.
What end connection options are available for the S80 Series, and how should they be selected?
NPT, BSPT, and BSPP threaded end connections are available. Selection should be based on the thread specifications of the site piping and the required tightness.
What safety features support installation and maintenance of this valve?
The valve is equipped with a stainless steel locking handle to keep the valve in position during operation and prevent inadvertent movement. It also features an internal blowout-proof stem and adjustable stem packing for sealing performance and low-torque operation.
What media and applications is the S80 Series suitable for?
It is suitable for general-purpose applications involving air, water, petroleum, and natural gas. It is commonly used in the chemical, textile, and process industries, providing reliable sealing and low-torque operation in demanding service conditions.
