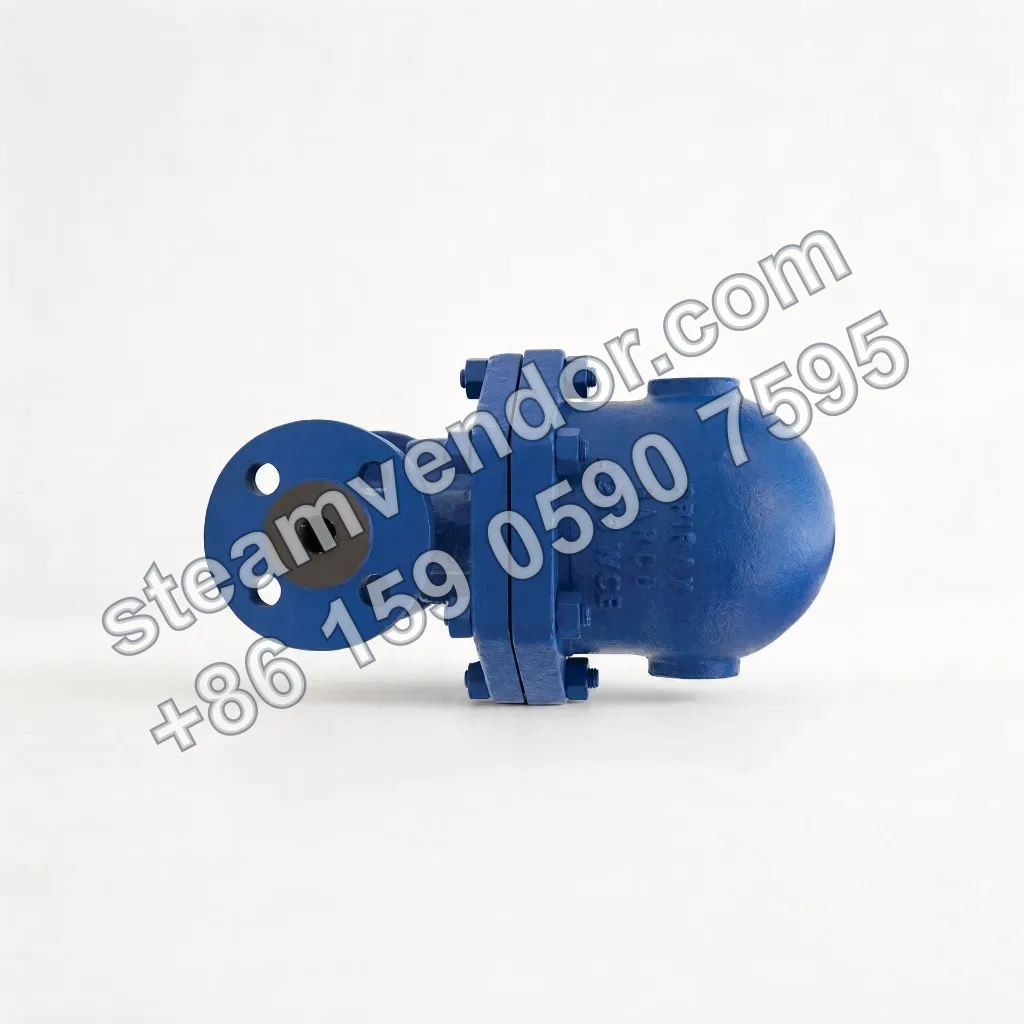

The Spirax Sarco CA44/CA44S carbon steel float trap is designed for condensate drainage in air and gas systems. Small-bore flanged versions cover DN15-DN25 (CA44 with a soft valve cone / CA44S with a metal valve cone, TI-P148-02); the CA44S is also available with 1" screwed or socket-weld connections (TI-P148-23) and DN40/DN50 flanged connections (TI-P148-03). The body is designed for PN40, and the integral flange design allows in-line maintenance.
CA44/CA44S Carbon Steel Ball Float Air Trap, Flanged Version | Spirax Sarco
1 / 2
CA44/CA44S Carbon Steel Ball Float Air and Gas Trap | Spirax Sarco
For condensate drainage in air and gas systems, with soft or metal valve cone options and in-line maintenance.
Select model
Genuine product assurance
We can help verify product data and purchasing details.
Model confirmation
Confirm model, connection and key options before ordering.
After-sales support
After-sales communication support is provided according to the order agreement.
Specifications
- Product Type
- Ball float trap
- Service Media
- Air, gases
- Connection Sizes (CA44)
- DN15, DN20
- Connection Sizes (Small-Bore CA44S)
- DN15, DN20, DN25
- Connection Sizes (Large-Bore CA44S)
- 1" threaded/socket-weld; DN40, DN50 flanged
- Flange Standards
- EN 1092 PN40, ASME B16.5 Class 150/300, JIS/KS 20 / 20K
- Connection Types
- Flanged; 1" threaded/socket-weld (CA44S)
- Installation Orientation
- Horizontal
- Body Material
- Carbon steel 1.0619+N/WCB
- Internal Components
- Stainless steel
- Valve Cone Material
- CA44: Viton fluoroelastomer; CA44S: stainless steel
- Maximum Allowable Pressure
- 40 bar g @ 120°C
- Maximum Allowable Temperature
- 400°C @ 20-20.6 bar g (depending on size, per TI)
- Maximum Operating Pressure
- 40 bar g
- Maximum Operating Temperature
- CA44: 200°C; CA44S: 400°C
- Minimum Operating Temperature
- 0°C
- Maximum Differential Pressure
- CA44-32: 32 bar (specific gravity 1.0); CA44S: 4.5-32 bar (specific gravity 1.0, depending on model)
- Maximum Cold Hydraulic Test Pressure
- PN40/ASME 300: 60 bar g; ASME 150: 30 bar g; JIS/KS 20: 49 bar g
- Balance Line Connection (Small-Bore)
- 1/2" BSP (PN/JIS/KS); 1/2" NPT (ASME)
- Balance Line Connection (DN40/DN50)
- 3/4" BSP or NPT
- Insulation Restriction (Large-Bore CA44S)
- Do not insulate
- Certification
- European Pressure Equipment Directive 97/23/EC
- Material Certificate
- EN 10204 3.1
Application scenarios
Low-Point Drainage in Air and Gas Distribution Systems
Used to discharge condensate from low-point collection or drain locations in air and gas transmission lines. Select DN15-DN25, 1", or DN40/DN50 according to the load and pipe size.
Selection points
Valve Cone Material and Operating Temperature
The CA44 uses a soft Viton fluoroelastomer valve cone and has a maximum operating temperature of 200°C. The CA44S uses a stainless steel valve cone and has a maximum operating temperature of 400°C. Select the model according to the valve cone design and operating temperature.
Integral Flanges for In-Line Maintenance
This series features an integral flange design and supports in-line maintenance. Maintenance requirements can therefore be considered when selecting a trap for air and gas systems.

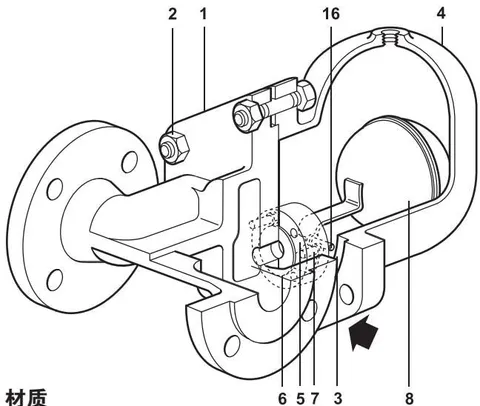

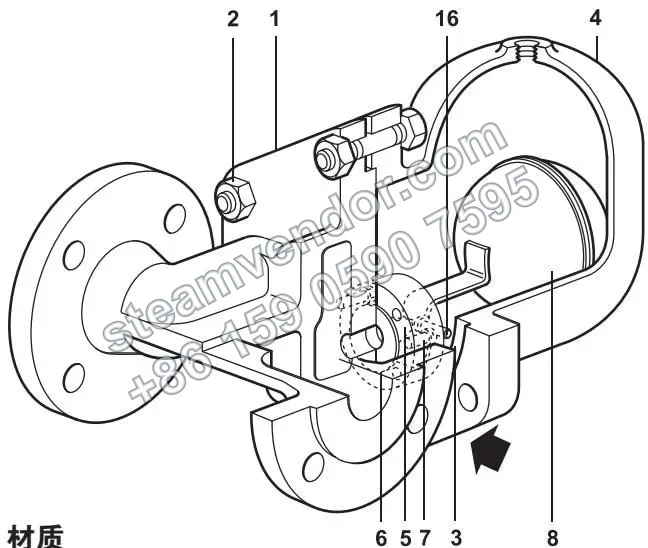

Carbon Steel Body and Stainless Steel Internals
The CA44 and CA44S have carbon steel bodies and stainless steel internals and are suitable for condensate drainage from air and gas systems.
Balance Line Connections by Size
Small-bore models have a 1/2" BSP balance line connection, with a 1/2" NPT connection available for ASME versions. DN40 and DN50 models have a 3/4" BSP or NPT balance line connection.
Optional Drain Valve Connection for Small-Bore Models
For small-bore models, the bottom of the cover can be supplied with a 1/2" BSP or NPT tapped hole for fitting a drain valve.
Installation & maintenance notes
Horizontal Installation
The CA44 and CA44S must be installed horizontally.
Balance Line Connection Requirements
Connect the balance line using the connection provided in the cover. DN15-DN25 models have a 1/2" BSP connection or an NPT connection specified at the time of order. The 1" and DN40/DN50 models have a 3/4" BSP or NPT connection.
Do Not Insulate Large-Bore CA44S Models
CA44S models with 1" threaded or socket-weld connections, and those with DN40 or DN50 flanged connections, must not be insulated.
FAQ
How do CA44/CA44S ball float traps operate in air and gas systems?
The trap uses a float that rises and falls with the liquid level to operate the valve cone automatically. When liquid accumulates to a specified level, the float rises and opens the valve cone to discharge the collected liquid. The valve closes when the liquid level falls. One advantage is that it operates without a bleed hole, but a separate balance line must be connected to prevent air or gas locking.
What is the difference between the CA44 and CA44S, and what sizes are available?
The CA44 has a soft Viton fluoroelastomer valve cone and a TMO of 200°C. The CA44S has a stainless steel valve cone and a TMO of 400°C. Both models have carbon steel bodies. Small-bore flanged versions cover DN15-DN25 (TI-P148-02: DN15/20 for the CA44 and DN15/20/25 for the CA44S). The CA44S is also available with 1" threaded or socket-weld connections (TI-P148-23) and DN40/DN50 flanged connections (TI-P148-03). Maximum differential pressure variants are CA44S-4.5/10/14/21/32.
What sizes and connection types are available for the CA44/CA44S?
Small-bore versions: DN15-DN25 flanged connections (EN 1092 PN40, ASME 150/300, JIS/KS 20). Large-bore CA44S versions: 1" threaded connections (BSP/NPT) or 1" socket-weld connections (BS3799 Class 3000); DN40/DN50 flanged connections (EN 1092-1 PN40, ASME 150/300, JIS/KS 20K). A balance line connection is provided in the cover.
What precautions should be taken during installation?
Install the trap horizontally and below the drain point, ensuring that the float arm can move freely in the vertical plane. Connect the balance line upstream of the trap. For ease of maintenance, install a union in the balance line close to the cover and fit isolation valves upstream and downstream. A check valve is recommended where outlet backpressure is present, and a silencer is recommended when discharging directly to atmosphere. CA44S models with 1", DN40, or DN50 connections must not be insulated.
Are test reports or certificates available, and how should spare parts be ordered?
The product complies with the European Pressure Equipment Directive 97/23/EC. Typical test reports and EN 10204 3.1 material certificates are available. Spare parts include the soft valve cone for the CA44 only, the main valve assembly with float, and the gasket set. Specify the model and size when ordering. Refer to IM-P148-37 for maintenance instructions.
