M10V Ball Valve Installation and Maintenance Guide

Threaded, socket-weld, butt-weld and flanged types

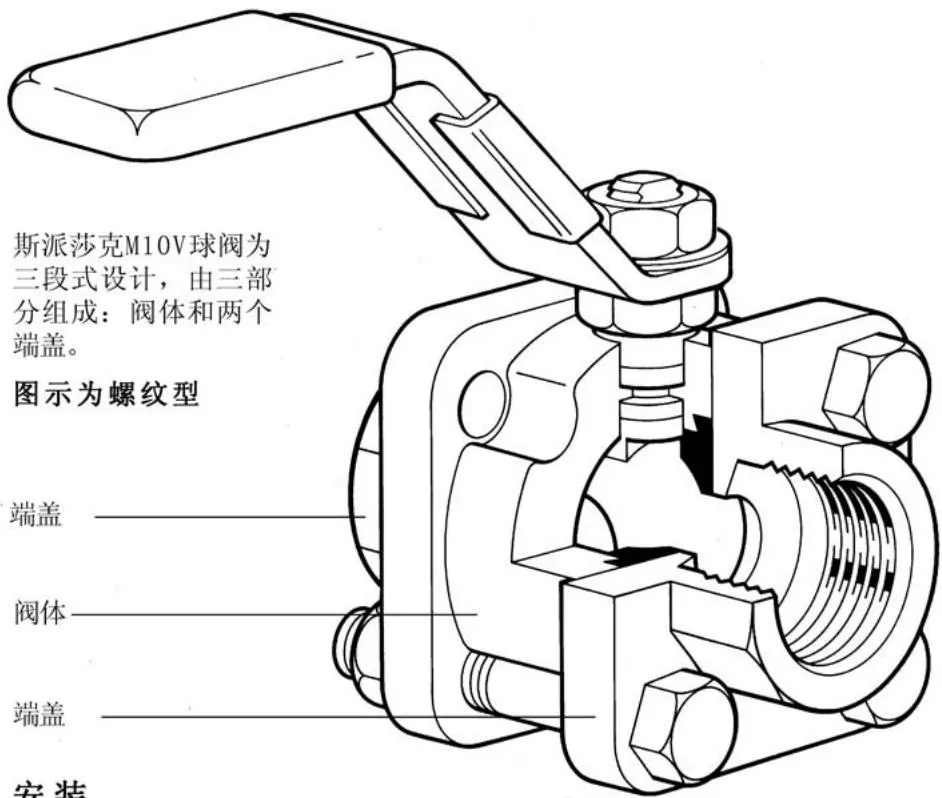

M10V ball valve installation diagram

The illustration shows the threaded type.

Installation

Although the valve is of robust construction, strain caused by poor pipe alignment and/or incorrect pipe length can adversely affect the valve and must be avoided.

Take particular care to ensure correct pipe alignment, with the pipe and valve on the same axis.

The valve is suitable for on/off service and allows flow in either direction. For steam systems:

Install a drain point upstream of the valve.
Open the valve slowly to avoid water hammer.

Socket-Weld and Butt-Weld Valves

Before welding:

Remove the end caps from the valve body.
Remove the PTFE seats.
Weld the end caps to the pipe.
Refit the PTFE seats.
Reassemble the valve.

Safety

Before dismantling or commissioning, ensure that there is no flow through the pipework. Isolate the pipework or interrupt the fluid flow. Drain the fluid from the pipework before removing the valve.

Maintenance

Introduction

Maintenance can be carried out without removing the entire ball valve from the pipework. Remove the two upper bolts and nuts (13, 14), then loosen the two lower ones. The complete valve body assembly can be removed and replaced with new parts.

Flanged Valves

The complete flanged valve must be removed from the pipework for maintenance. Remove the four nuts (14); the complete valve body can then be removed and replaced with new parts.

Replacing the Seat

Remove the valve body as described above.
Remove the seat (5).
Fit a new seat, pressing it into position in the valve body.

Replacing the Stem Seal

Remove the valve body as described above.
Remove nuts (8) and (8A).
Replace the stem seal (6).

Reassembly

Reassemble in the reverse order of the steps above.

Spare Parts

Available spare parts are shown with solid lines; components shown with dashed lines are not available as spare parts.

Available Spare Parts

Seat and stem seal assembly 5,6

Ordering Spare Parts

Order spare parts as listed above, specifying the ball valve size and type.

Example: Seat and stem seal assembly for a 1-1/2” M10V2FB ball valve.
