The Bray Series 60 24VDC NAMUR-interface solenoid coil is a 5-port, 2-way (5/2) pneumatic directional control product. It features direct NAMUR-interface mounting, a DIN 43650 Type A electrical connection, and 1/4-inch NPT ports. Suitable for filtered dry air from 35 to 150 psig, it can be used to control valve opening and closing in double-acting pneumatic actuators.

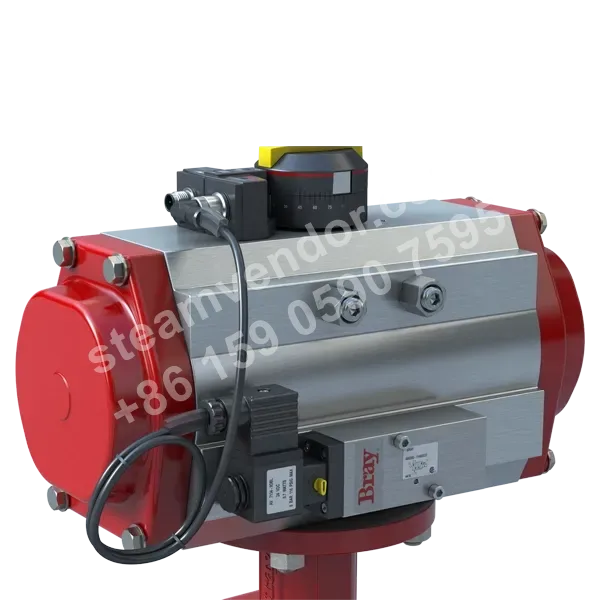

Series 60 Solenoid Coil Product Image
1 / 3

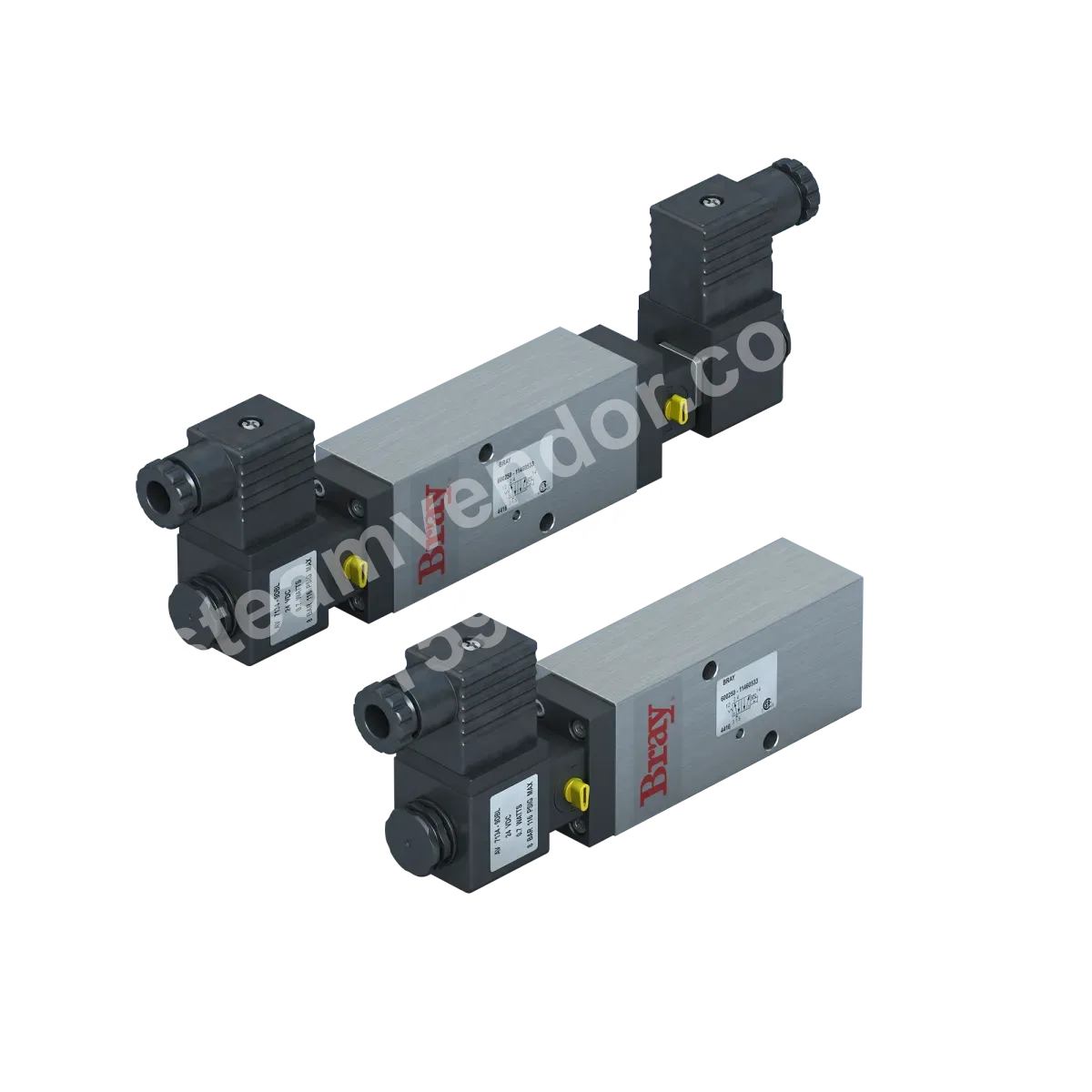

Bray Series 60 24VDC NAMUR Interface Solenoid Coil
5/2 solenoid coil for pneumatic valve directional control, supporting 24VDC
Genuine product assurance
We can help verify product data and purchasing details.
Model confirmation
Confirm model, connection and key options before ordering.
After-sales support
After-sales communication support is provided according to the order agreement.
Specifications
- Electrical Connection
- DIN 43650 Form A
- Mounting Method
- Direct NAMUR Interface Mounting
- Port Size
- 1/4 in. NPT
- Operating Temperature Range
- 0°F to 123°F (-18°C to 50°C)
- Operating Pressure
- 35 to 150 psig (2.4 to 10.3 bar)
- Valve Function
- 5-port, 2-position (5/2)
- Compatible Media
- Filtered Dry Air
- Rated Voltage
- 24VDC
Application scenarios

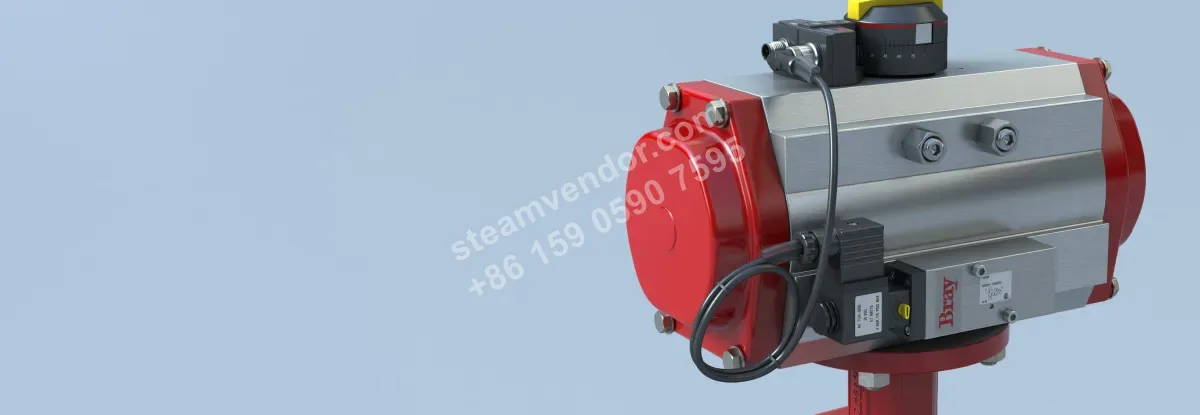

Valve directional control for double-acting pneumatic actuators
This Series 60 24VDC, 5-port, 2-position solenoid valve mounts directly via a NAMUR interface and uses filtered dry air at 35 to 150 psig for pneumatic directional control, enabling open/close control of pneumatic valve actuators.
Selection points
Direct NAMUR Interface Mounting
Uses direct NAMUR interface mounting for pneumatic actuators with compatible NAMUR mounting interfaces.
5-Port 2-Position Pneumatic Control
The current valve configuration is 5-port 2-position (5/2), intended for selection in compatible pneumatic control circuits.
35 to 150 psig Operating Pressure Range
The product operates within a pressure range of 35 to 150 psig (2.4 to 10.3 bar) and uses filtered dry air as the medium.
Installation & maintenance notes
Use Filtered Dry Air as the Supply Medium
Only filtered dry air should be connected as the supply medium during installation and operation.
Maintain Supply Pressure Within the Specified Operating Range
Supply pressure must be maintained within the operating pressure range of 35 to 150 psig (2.4 to 10.3 bar).
Maintain Operating Temperature Within the Specified Range
The installation location and operating conditions must keep the product operating temperature within the range of -18°C to 50°C (0°F to 123°F).
Verify 24VDC and DIN 43650 Type A Electrical Connection
Electrical installation must use a DIN 43650 Type A connection, and the rated supply voltage must be verified as 24VDC.
FAQ
What is the operating principle of the Series 60 solenoid coil?
The Series 60 solenoid coil is driven by a 24VDC supply, with signal input provided through a DIN 43650 Form A electrical connection. Its integrated compact aluminum valve body controls air pressure (35 to 150 psig) using filtered dry air to provide precise valve opening and closing.
What mounting interfaces are available for this series, and does it support direct mounting on a NAMUR interface?
Yes. The Series 60 is designed for direct mounting on a NAMUR interface, enabling rapid integration into existing pneumatic systems.
What are the operating temperature and media limitations?
The temperature range is 0°F to 123°F (-18°C to 50°C). The medium is filtered dry air, making it suitable for applications using clean air as the driving medium.
How do the port size and electrical specifications match field requirements?
The port is 1/4 in. NPT, the electrical connection uses DIN 43650 Form A, and the supply voltage is 24VDC, enabling compatibility with standard pneumatic control systems.
What key performance factors should be considered during product selection?
Key considerations include the operating pressure range (35 to 150 psig), temperature range, port and connection type, and compatibility of the supply voltage and control signal to ensure stable pneumatic output and control accuracy in the intended application.
